178811-1 | AMP

Plug, 26 pole, angled, 2 rows, white, 178811-1

Order No.: 36P1672
EAN: 4099889896527
MPN:
178811-1
Series: Multilock

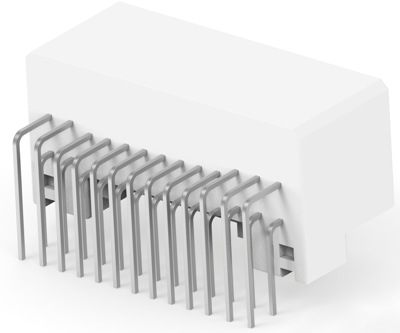

178811-1 AMP Automotive Power Connectors Image 1

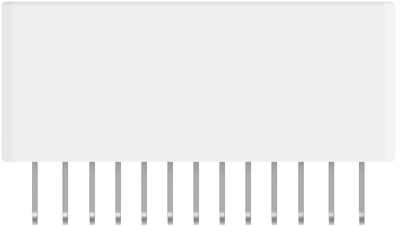

178811-1 AMP Automotive Power Connectors Image 2

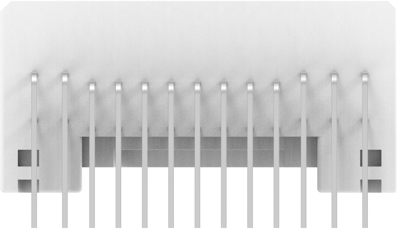

178811-1 AMP Automotive Power Connectors Image 3

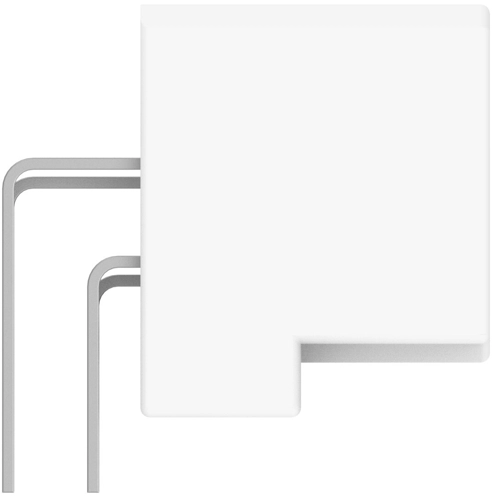

178811-1 AMP Automotive Power Connectors Image 4

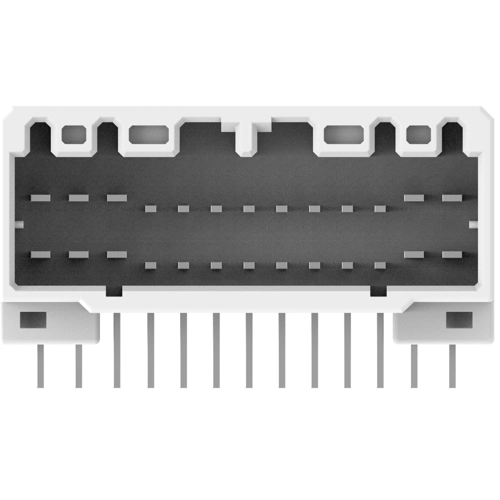

178811-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
5.8786 € *
Standard delivery time from the manufacturer is: 26 Weeks
Total Price:
3,174.44 € *
*incl. VAT plus shipping costs
Subject to prior sale
540 pcs.
5.8786 €

Hybrid header, 178811-1, AMP

Hybrid header: yes, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 26, Number of positions: 26, PCB mount orientation: horizontal, Number of rows: 2, Nominal voltage architecture: 12 V, Primary product color: white, Mating tab width: 1 mm, 1.8 mm, Mating tab thickness: 0.64 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: mounting hole, Centerline (pitch): 3 mm, 3.5 mm, PCB thickness (recommended): 1.6 mm, Operating temperature (max): 100 °C, 105 °C, 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging quantity: 10, Interface number: 917992

Technical specifications
contact surface tin-plated
Number of rows 2
Type of locking Yes
Colour white
Connection solder connection
Rated voltage 12 V
Contact type plug
Grid 3 mm
Pin number 26 pole
Version angled
Logistics
Customs tariff number 85366930
Country of origin CN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
