178411-6 | AMP

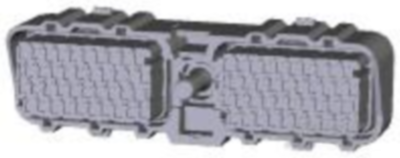

Socket, unequipped, 80 pole, straight, 4 rows, gray, 178411-6
Unit Price (€ / pc.)
28.8099 € *
Standard delivery time from the manufacturer is: 32 Weeks
Socket housing, 178411-6, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 80, Number of rows: 4, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: gray, Mating tab width: 1 mm, Mating alignment type: polarized, Centerline (pitch): 3.6 mm, Row-to-row spacing: 2.54 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Packaging quantity: 20, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.6 mm | |
| Contact type | socket | |
| Connection | crimp connection | |
| Rated voltage | 12 V | |
| Number of rows | 4 | |
| Type of locking | Yes | |
| Pin number | 80 pole | |
| Additional parts | unequipped | |
| Colour | gray | |
| Version | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
