178409-6 | AMP

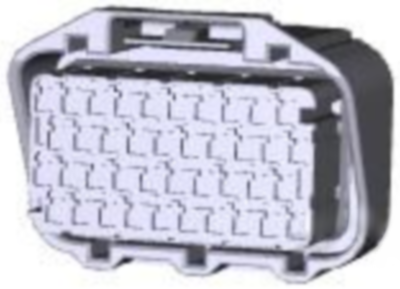

Socket, unequipped, 40 pole, straight, 4 rows, gray, 178409-6
Unit Price (€ / pc.)
15.9817 € *
Available: 0 pcs.
Leadtime: On Request **
Socket housing, 178409-6, AMP
Row-to-row spacing: 2.54 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: yes, Hybrid connector: no, Number of positions: 40, Number of rows: 4, Nominal voltage architecture: 12 V, Operating voltage: 12 VDC, Cable exit angle: 180°, Body material: PBT, Primary product color: gray, Mating tab width: 1 mm, Mounting feature: without, Polarized, Centerline (pitch): 3.6 mm, Height: 26.7 mm, Length: 45.7 mm, Width: 35.6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Packaging quantity: 50, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 4 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | gray | |
| Contact type | socket | |
| Rated voltage | 12 V | |
| Pin number | 40 pole | |
| Grid | 3.6 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
