175783-2 | AMP

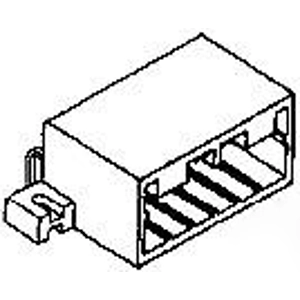

Plug, 6 pole, angled, 1 row, black, 175783-2
Unit Price (€ / pc.)
2.8322 € *
Standard delivery time from the manufacturer is: 25 Weeks
Total Price:
2.83 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8322 €
10 pcs.
2.6061 €
50 pcs.
2.4276 €
100 pcs.
2.1896 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB mount header, 175783-2, AMP
Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 6, PCB mount orientation: horizontal, Number of rows: 1, Operating voltage: 12 VDC, Primary product color: black, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention: without, Centerline (pitch): 3.5 mm, Product length: 12.5 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Shielded: no, UL flammability rating: UL 94HB, Packaging type: tube
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | tin-plated | |
| Number of rows | 1 | |
| Type of locking | Yes | |
| Colour | black | |
| Connection | solder connection | |
| Rated voltage | 12 V | |
| Contact type | plug | |
| Grid | 3.5 mm | |
| Pin number | 6 pole | |
| Version | angled |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
