175652-2 | AMP

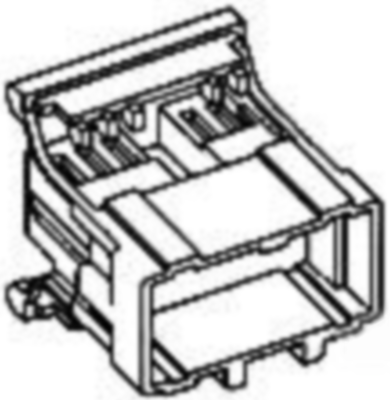

Plug, unequipped, 20 pole, straight, 2 rows, black, 175652-2

Order No.: 36P1448
EAN: 4099889894882
MPN:
175652-2
Series: Multilock
175652-2 AMP Automotive Power Connectors
Image may differ
Unit Price (€ / pc.)
4.9742 € *
Available in 5 Days: 191 pcs. - if ordered today
Total Price:
4.97 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9742 €
10 pcs.
4.5934 €
50 pcs.
4.1174 €
100 pcs.
3.7247 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug housing, 175652-2, AMP

Row-to-row spacing: 2.54 mm, 4.5 mm, Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Number of positions: 20, Number of rows: 2, Nominal voltage architecture: 12 V, Operating voltage: 12 VDC, Cable exit angle: 180°, Body material: PBT, Primary product color: black, Mating tab width: 1 mm, Mounting feature: without, Polarized, Centerline (pitch): 2.5 mm, Height: 19.2 mm, Length: 32.8 mm, Width: 33.7 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging method: bag, Packaging quantity: 50, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Number of rows 2
Grid 2.5 mm
Pin number 20 pole
Connection crimp connection
Type of locking Yes
Colour black
Additional parts unequipped
Contact type plug
Version straight
Rated voltage 12 V
Logistics
Customs tariff number 85472000
Country of origin JP
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
