175444-1 | AMP

Plug, 34 pole, angled, 2 rows, white, 175444-1

Order No.: 36P1736
EAN: 4099889896800
MPN:
175444-1
Series: Multilock

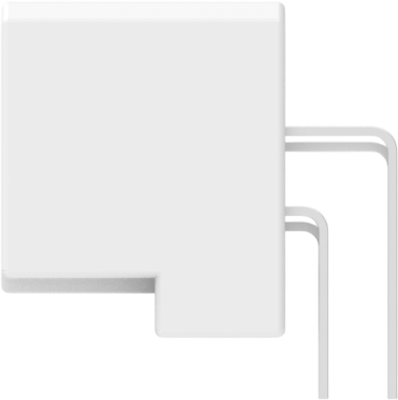

175444-1 AMP Automotive Power Connectors Image 1

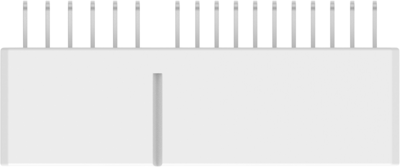

175444-1 AMP Automotive Power Connectors Image 2

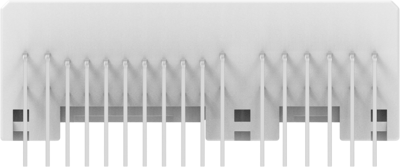

175444-1 AMP Automotive Power Connectors Image 3

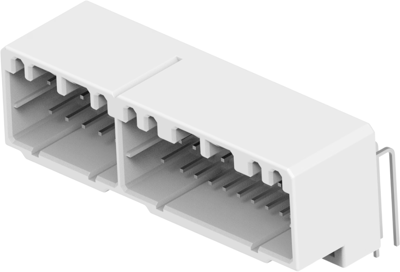

175444-1 AMP Automotive Power Connectors Image 4

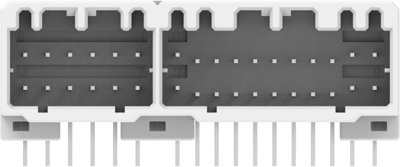

175444-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
7.2352 € *
Available in 5 Days: 172 pcs. - if ordered today
Total Price:
7.24 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.2352 €

PCB mount header, 175444-1, AMP

Hybrid header: yes, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 34, Number of positions: 34, PCB mount orientation: horizontal, Number of rows: 2, Operating voltage: 12 VDC, Primary product color: white, Mating tab width: 1 mm, 1.8 mm, Mating tab thickness: 0.64 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: mounting hole, Centerline (pitch): 3 mm, 3.5 mm, Product length: 25.8 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Shielded: no, Circuit application: signal, UL flammability rating: UL 94HB, Packaging quantity: 7

Technical specifications
Version angled
Colour white
Type of locking Yes
Rated voltage 12 V
contact surface tin-plated
Pin number 34 pole
Connection solder connection
Grid 3 mm
Number of rows 2
Contact type plug
Logistics
Customs tariff number 85366990
Country of origin TH
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
