175442-1 | AMP

Socket, unequipped, 12 pole, straight, 2 rows, natural, 175442-1

Order No.: 36P1625
EAN: 4099889896213
MPN:
175442-1
Series: Multilock

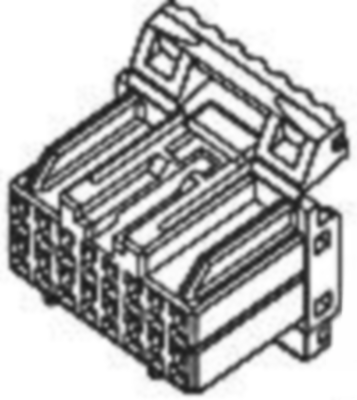

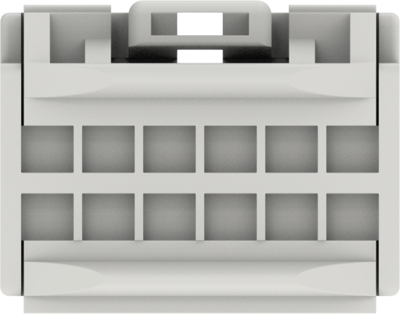

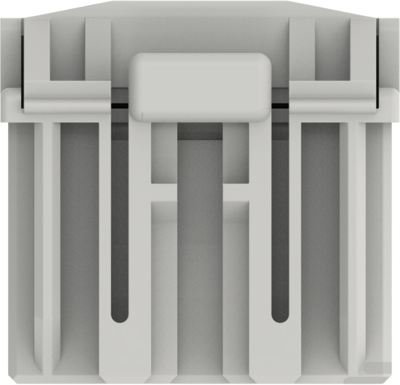

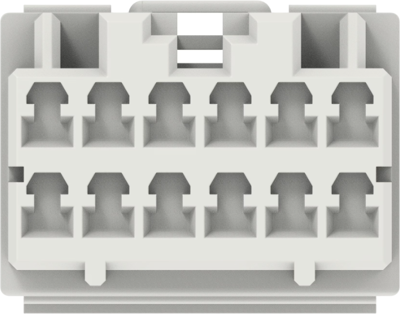

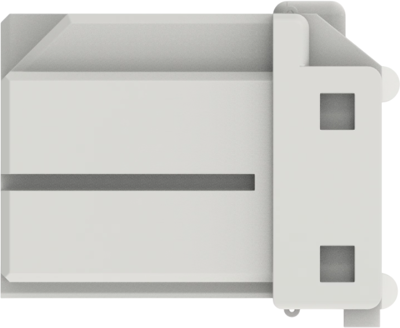

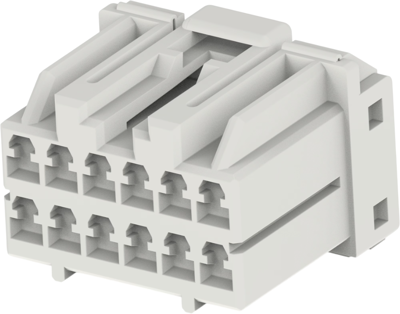

175442-1 AMP Automotive Power Connectors Image 1
175442-1 AMP Automotive Power Connectors Image 2
175442-1 AMP Automotive Power Connectors Image 3
175442-1 AMP Automotive Power Connectors Image 4
175442-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.3923 € *
Available in 5 Days: 4,402 pcs. - if ordered today
Total Price:
1.39 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3923 €
10 pcs.
1.2733 €
50 pcs.
1.1424 €
100 pcs.
1.0353 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 175442-1, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: yes, Primary locking feature: integrated in housing, Number of positions: 12, Number of rows: 2, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: natural, Mating tab width: 1.8 mm, Mating alignment type: polarized, Centerline (pitch): 3.5 mm, Row-to-row spacing: 10 mm, 2.54 mm, 5 mm, 5.36 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version straight
Colour natural
Type of locking Yes
Rated voltage 12 V
Pin number 12 pole
Connection crimp connection
Grid 3.5 mm
Number of rows 2
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin TH
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
