174975-2 | AMP

Plug, 16 pole, straight, 2 rows, black, 174975-2

Order No.: 36P1655
EAN: 4099889896404
MPN:
174975-2
Series: Multilock

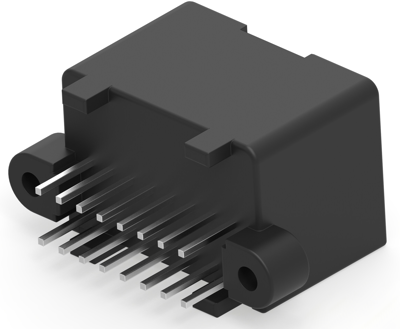

174975-2 AMP Automotive Power Connectors Image 1

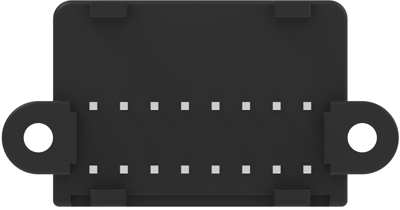

174975-2 AMP Automotive Power Connectors Image 2

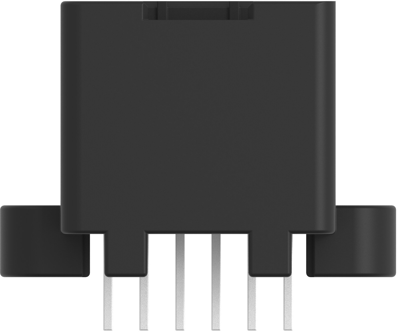

174975-2 AMP Automotive Power Connectors Image 3

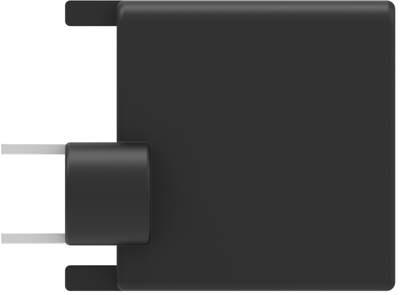

174975-2 AMP Automotive Power Connectors Image 4

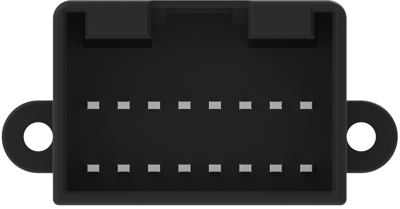

174975-2 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
3.9151 € *
Available in 5 Days: 580 pcs. - if ordered today
Total Price:
3.92 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9151 €
10 pcs.
3.6057 €
50 pcs.
3.2487 €
100 pcs.
2.9155 €
*incl. VAT plus shipping costs
Subject to prior sale

Hybrid header, 174975-2, AMP

Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 16, Number of positions: 16, PCB mount orientation: vertical, Number of rows: 2, Nominal voltage architecture: 12 V, Primary product color: black, Mating tab width: 1 mm, Mating tab thickness: 0.64 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention: without, Centerline (pitch): 2.5 mm, PCB thickness (recommended): 1.6 mm, Operating temperature (max): 100 °C, 105 °C, 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging quantity: 100, Interface number: 174046

Technical specifications
Colour black
Type of locking Yes
contact surface tin-plated
Rated current 5 A
Grid 2.5 mm
Pin number 16 pole
Version straight
Connection solder connection
Contact type plug
Rated voltage 12 V
Number of rows 2
Logistics
Country of origin TH
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
