174971-2 | AMP

Plug, 8 pole, straight, 2 rows, black, 174971-2

Order No.: 36P1659
EAN: 4099889896442
MPN:
174971-2
Series: Multilock

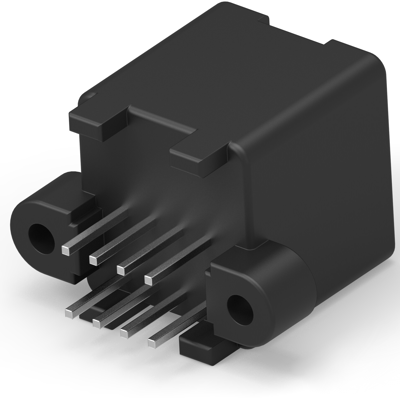

174971-2 AMP Automotive Power Connectors Image 1

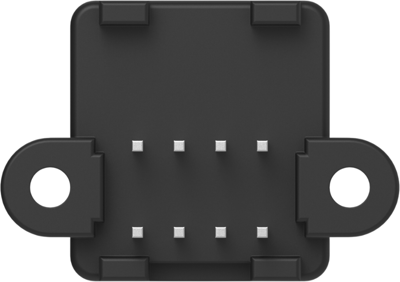

174971-2 AMP Automotive Power Connectors Image 2

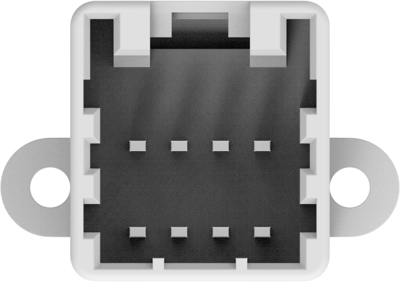

174971-2 AMP Automotive Power Connectors Image 3

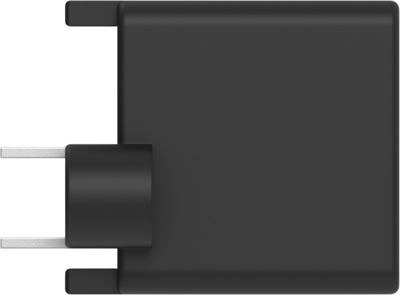

174971-2 AMP Automotive Power Connectors Image 4

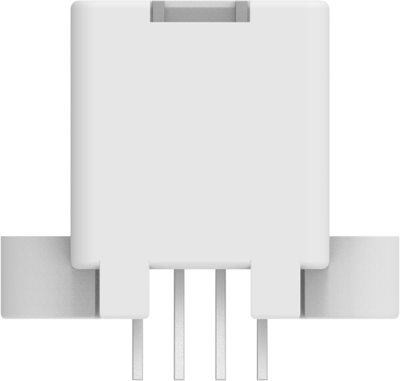

174971-2 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
2.5585 € *
Available in 5 Days: 9,000 pcs. - if ordered today
Total Price:
2.56 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5585 €
10 pcs.
2.3443 €
50 pcs.
2.1182 €
100 pcs.
1.9040 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB mount header, 174971-2, AMP

Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 8, Number of positions: 8, PCB mount orientation: vertical, Number of rows: 2, Operating voltage: 12 VDC, Primary product color: black, Mating tab width: 1 mm, Mating tab thickness: 0.64 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: mounting hole, Centerline (pitch): 2.5 mm, Product length: 16.9 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Shielded: no, Circuit application: signal, UL flammability rating: UL 94HB, Packaging quantity: 100, Interface number: 174044

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 12 V
contact surface tin-plated
Pin number 8 pole
Connection solder connection
Grid 2.5 mm
Number of rows 2
Contact type plug
Logistics
Customs tariff number 85366930
Country of origin TH
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
