1746979-1 | AMP

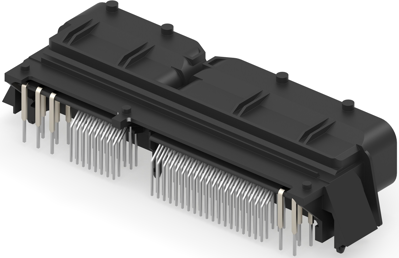

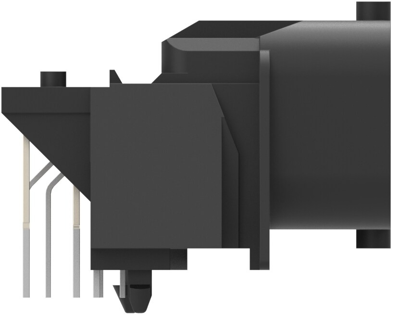

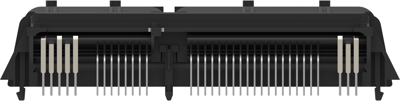

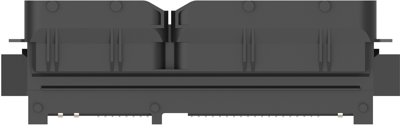

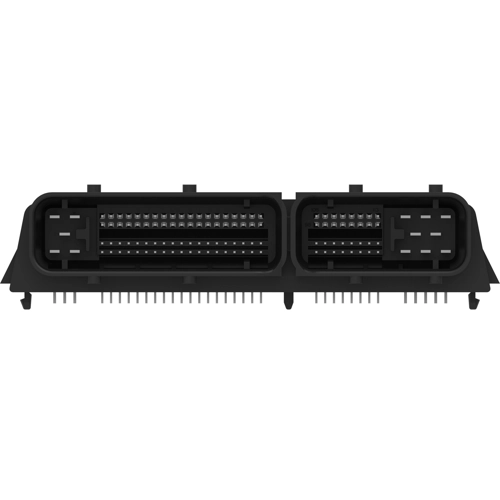

Hybrid header, 1746979-1, AMP

Hybrid header: yes, Sealable: yes, Connector & contact terminates to: printed circuit board, Number of sections: 2, Number of positions: 121, PCB mount orientation: horizontal, Number of rows: 4, Nominal voltage architecture: 12 V, Primary product color: black, Mating tab width: 0.63 mm, 2.8 mm, Mating tab thickness: 0.63 mm, 0.8 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: boardlock, Centerline (pitch): 2.54 mm, 5.8 mm, PCB thickness (recommended): 1.6 mm, Operating temperature (max): 100 °C, 105 °C, 110 °C, 120 °C, 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, Operating temperature range: -40-120 °C, Circuit application: signal, UL flammability rating: none, Packaging quantity: 50
