174657-2 | AMP

Plug, unequipped, 10 pole, straight, 2 rows, black, 174657-2

Order No.: 35P9152
EAN: 4099889888980
MPN:
174657-2
Series: Econseal
174657-2 AMP Automotive Power Connectors

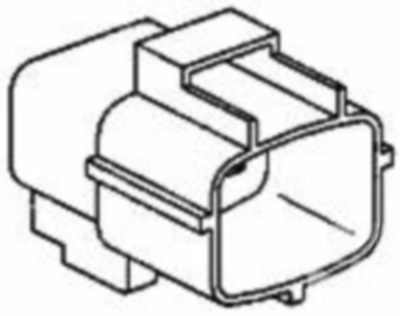

Image may differ
Unit Price (€ / pc.)
2.2015 € *
Available in 5 Days: 263 pcs. - if ordered today
Total Price:
2.20 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2015 €
10 pcs.
1.9992 €
50 pcs.
1.7969 €
100 pcs.
1.6184 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug housing, 174657-2, AMP

Row-to-row spacing: 3 mm, Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Number of positions: 10, Number of rows: 2, Nominal voltage architecture: 12 V, Operating voltage: 12 VDC, Cable exit angle: 180°, Body material: PBT, Primary product color: black, Mating tab width: 1.8 mm, Terminal position assurance: yes, Polarized, Centerline (pitch): 4.8 mm, Height: 30.7 mm, Length: 36.5 mm, Width: 32.7 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94V-2, Packaging method: bag, Packaging quantity: 100, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Colour black
Pin number 10 pole
Contact type plug
Type of locking Yes
Version straight
Number of rows 2
Connection crimp connection
Rated voltage 12 V
Additional parts unequipped
Grid 4.8 mm
Logistics
Country of origin IN
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
