174515-6 | AMP

Socket, unequipped, 22 pole, straight, 2 rows, gray, 174515-6

Order No.: 36P1605
EAN: 4099889896121
MPN:
174515-6
Series: Multilock

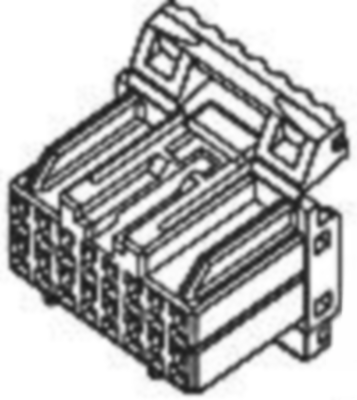

174515-6 AMP Automotive Power Connectors Image 1

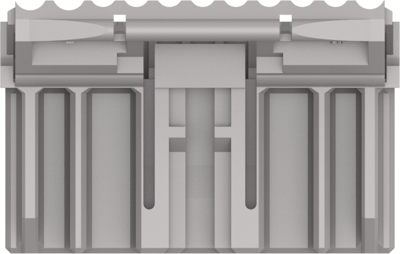

174515-6 AMP Automotive Power Connectors Image 2

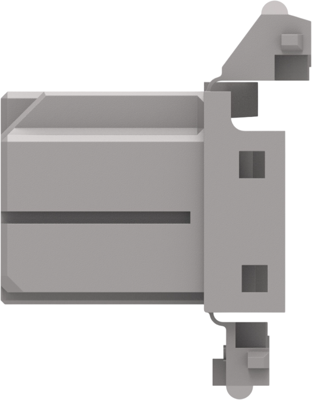

174515-6 AMP Automotive Power Connectors Image 3

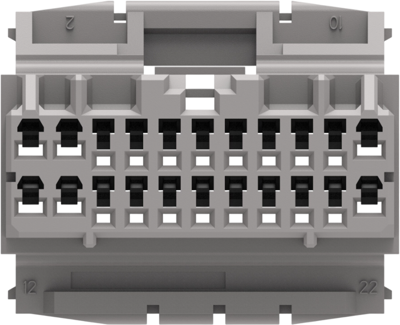

174515-6 AMP Automotive Power Connectors Image 4

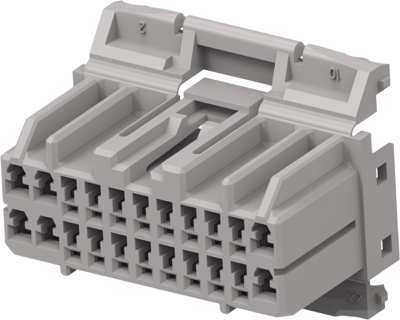

174515-6 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
2.6299 € *
Available in 5 Days: 4,555 pcs. - if ordered today
Total Price:
2.63 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6299 €
10 pcs.
2.4157 €
50 pcs.
2.1777 €
100 pcs.
1.9635 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 174515-6, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: yes, Primary locking feature: integrated in housing, Number of positions: 22, Number of rows: 2, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: gray, Mating tab width: 1 mm, 1.8 mm, Mating alignment type: polarized, Centerline (pitch): 3 mm, 3.5 mm, Row-to-row spacing: 3 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging quantity: 50, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version straight
Colour gray
Type of locking Yes
Rated voltage 12 V
Pin number 22 pole
Connection crimp connection
Grid 3 mm
Number of rows 2
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin TH
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
