1745005-1 | AMP

Socket, unequipped, 18 pole, straight, 2 rows, black, 1745005-1

Order No.: 36P1008
EAN: 4099889892420
MPN:
1745005-1
1745005-1 AMP Automotive Power Connectors

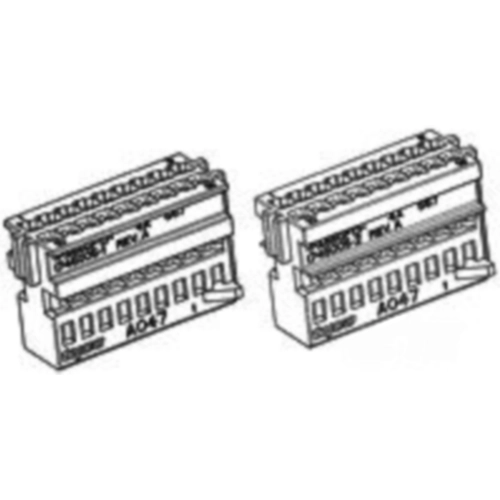

Image may differ
Unit Price (€ / pc.)
0.3927 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
1,767.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
4500 pcs.
0.3927 €

Socket housing, 1745005-1, AMP

Row-to-row spacing: 3 mm, 3.2 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Number of positions: 18, Number of rows: 2, Nominal voltage architecture: 12 V, 24 V, Operating voltage: 24 VDC, Cable exit angle: 180°, Body material: PA GF, Primary product color: black, Mating tab width: 0.63 mm, Mounting feature: without, Polarized, Centerline (pitch): 2.54 mm, Height: 16 mm, Length: 26.4 mm, Width: 11.8 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -30-125 °C, Circuit application: signal, Packaging method: box, Packaging quantity: 4500, Serviceable: no, Connector position assurance capable: no

Technical specifications
Filter Property Value
Colour black
Type of locking Yes
Grid 2.54 mm
Pin number 18 pole
Version straight
Additional parts unequipped
Connection crimp connection
Contact type socket
Rated voltage 24 V
Number of rows 2
Logistics
Property Value
Country of origin TH
Customs tariff number 85389091
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
