174465-1 | AMP

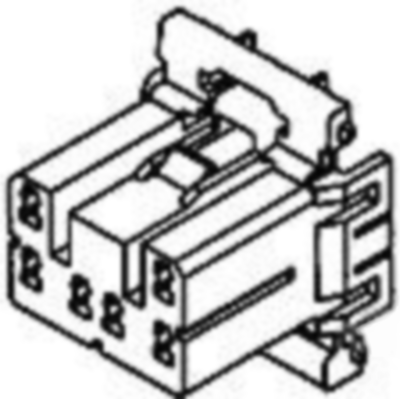

Socket, unequipped, 10 pole, straight, 2 rows, white, 174465-1
Unit Price (€ / pc.)
1.0115 € *
Standard delivery time from the manufacturer is: 29 Weeks
Socket housing, 174465-1, AMP
Row-to-row spacing: 3 mm, 3.5 mm, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Strain relief: no, Number of positions: 10, Number of rows: 2, Body material: PBT, Primary product color: white, Mating tab width: 1.8 mm, Mounting feature: without, Polarized, Height: 21.6 mm, Length: 28.4 mm, Width: 25 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging method: bag, Packaging quantity: 100, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 14 A | |
| Additional parts | unequipped | |
| Version | straight | |
| Type of locking | No | |
| Number of rows | 2 | |
| Contact type | socket | |
| Colour | white | |
| Pin number | 10 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
