174464-1 | AMP

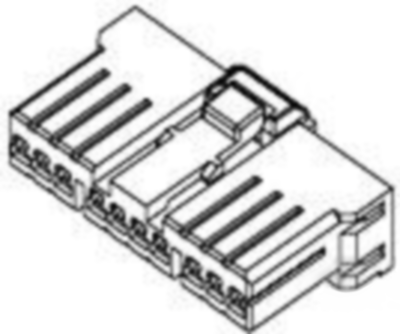

Socket, unequipped, 10 pole, straight, 1 row, white, 174464-1
Unit Price (€ / pc.)
1.4161 € *
Available in 5 Days: 1,508 pcs. - if ordered today
Total Price:
1.42 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4161 €
10 pcs.
1.3209 €
25 pcs.
1.2257 €
50 pcs.
1.1186 €
*incl. VAT plus shipping costs
Subject to prior sale
Automotive housing, 174464-1, AMP
Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Number of positions: 10, Number of rows: 1, Body material: PBT, Primary product color: white, Mating tab width: 1.8 mm, Mating alignment type: polarized, Centerline (pitch): 3.5 mm, Product height: 21.6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bag, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | white | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Connection | crimp connection | |
| Type of locking | No | |
| Version | straight | |
| Pin number | 10 pole | |
| Contact type | socket | |
| Grid | 3.5 mm | |
| Rated current | 14 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
