174046-1 | AMP
Socket, unequipped, 16 pole, straight, 2 rows, natural, 174046-1
Unit Price (€ / pc.)
0.9401 € *
Standard delivery time from the manufacturer is: 9 Weeks

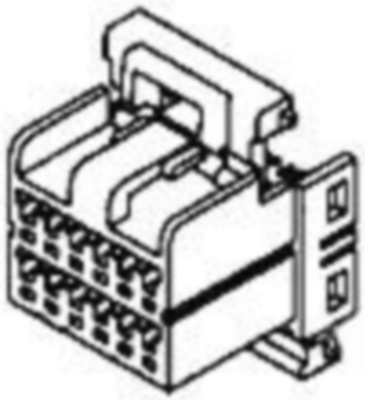

Socket housing, 174046-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 16, Number of rows: 2, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: natural, Mating tab width: 1 mm, Mating alignment type: polarized, Centerline (pitch): 2.5 mm, Row-to-row spacing: 3 mm, 5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 5 A | |
| Rated voltage | 12 V | |
| Version | straight | |
| Number of rows | 2 | |
| Additional parts | unequipped | |
| Pin number | 16 pole | |
| Grid | 2.5 mm | |
| Type of locking | Yes | |
| Contact type | socket | |
| Colour | natural | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
