173850-1 | AMP

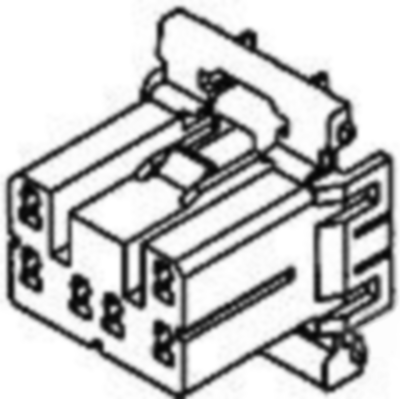

Socket, unequipped, 8 pole, straight, 2 rows, natural, 173850-1

Order No.: 36P1545
EAN: 4099889895674
MPN:
173850-1
Series: Multilock
173850-1 AMP Automotive Power Connectors
Image may differ
Unit Price (€ / pc.)
1.7017 € *
Available in 5 Days: 400 pcs. - if ordered today
Total Price:
1.70 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7017 €
10 pcs.
1.5589 €
50 pcs.
1.4042 €
100 pcs.
1.2614 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 173850-1, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 8, Number of rows: 2, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: natural, Mating tab width: 1.8 mm, Mating alignment type: polarized, Centerline (pitch): 3.5 mm, 5.5 mm, Row-to-row spacing: 3 mm, 7.7 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Colour natural
Type of locking Yes
Rated current 14 A
Grid 3.5 mm
Pin number 8 pole
Version straight
Additional parts unequipped
Connection crimp connection
Contact type socket
Rated voltage 12 V
Number of rows 2
Logistics
Country of origin TH
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
