172494-1 | AMP

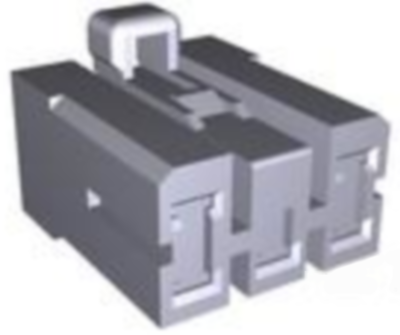

Socket, unequipped, 5 pole, straight, 2 rows, natural, 172494-1
Order No.: 36P2082
EAN: 4099889897302
MPN:
172494-1
Unit Price (€ / pc.)
0.7973 € *
Next delivery: 275 pcs. on 2025-10-06
Available in 5 Days: 12,944 pcs. - if ordered today
Total Price:
0.80 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7973 €
10 pcs.
0.7497 €
25 pcs.
0.6902 €
50 pcs.
0.6307 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, 172494-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 5, Number of rows: 2, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PA, Primary product color: natural, Mating tab width: 3 mm, Mating alignment type: polarized, Centerline (pitch): 5 mm, 7 mm, Row-to-row spacing: 3.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94V-2, Packaging method: bag/Box, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | crimp connection | |
| Number of rows | 2 | |
| Colour | natural | |
| Type of locking | Yes | |
| Version | straight | |
| Additional parts | unequipped | |
| Pin number | 5 pole | |
| Grid | 5.7 mm | |
| Rated voltage | 12 V | |
| Contact type | socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
