1718488-1 | AMP
Socket, unequipped, 7 pole, straight, 1 row, natural, 1718488-1
Order No.: 36P4268
EAN: 4099889906073
MPN:
1718488-1
Unit Price (€ / pc.)
1.1900 € *
Available: 199 pcs.
Available in 5 Days: 1,100 pcs. - if ordered today
Total Price:
5.95 € *
Price list
Quantity
Price per unit*
5 pcs.
1.1900 €
10 pcs.
1.1067 €
25 pcs.
1.0234 €
50 pcs.
0.9282 €
*incl. VAT plus shipping costs
Subject to prior sale

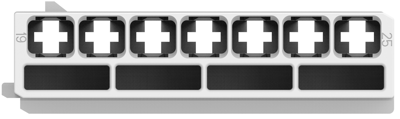

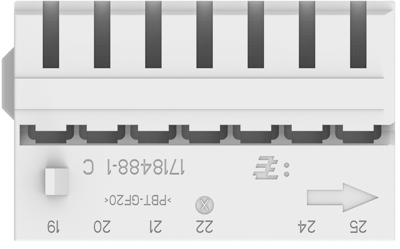

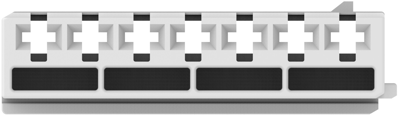

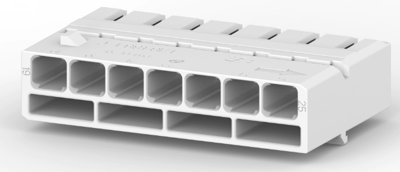

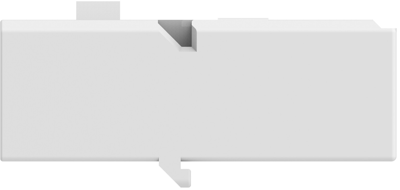

Socket housing, 1718488-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 7, Number of rows: 1, Operating voltage: 36 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PBT GF, Primary product color: natural, Mating tab width: 2.8 mm, Strain relief: no, Centerline (pitch): 5 mm, Product height: 11 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: box, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| Type of locking | Yes | |
| Connection | crimp connection | |
| Number of rows | 1 | |
| Pin number | 7 pole | |
| Rated voltage | 36 V | |
| Version | straight | |
| Rated current | 40 A | |
| Additional parts | unequipped | |
| Colour | natural | |
| Contact type | socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
