1718232-1 | AMP

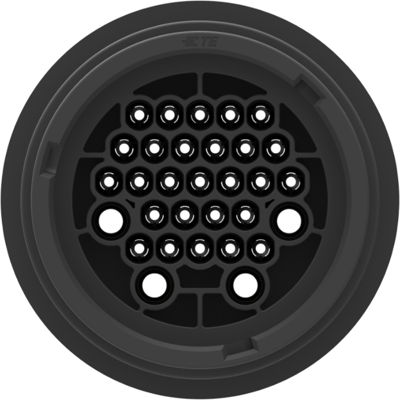

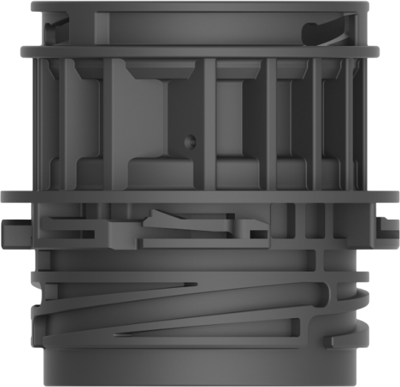

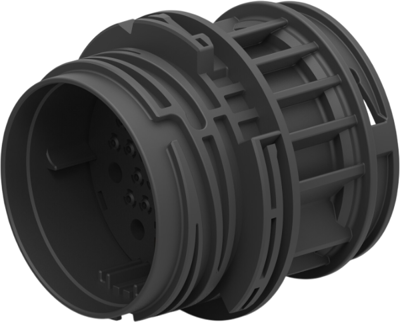

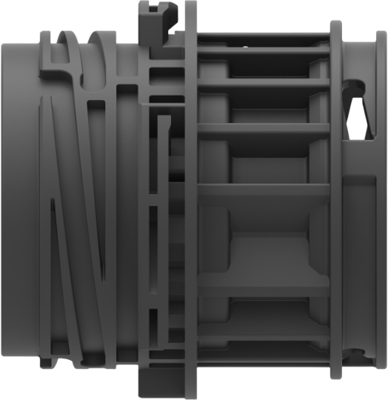

Plug, unequipped, 31 pole, straight, 4 rows, black, 1718232-1
Order No.: 36P3975
EAN: 4099889904116
MPN:
1718232-1
Unit Price (€ / pc.)
10.7100 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
10.71 € *
Price list
Quantity
Price per unit*
1 pcs.
10.7100 €
5 pcs.
10.1507 €
10 pcs.
9.4962 €
25 pcs.
8.6632 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug housing, 1718232-1, AMP
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: yes, Primary locking feature: on the terminal, Number of positions: 31, Operating voltage: 24 VDC, Nominal voltage architecture: 12 V, 24 V, 42 V, 48 V, Body material: PBT GF, Primary product color: black, Mating pin diameter: 1.5 mm, 2.5 mm, Mating alignment type: polarized, Product height: 65 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, UL flammability rating: UL 94HB, Packaging method: box, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 9 mm | |
| Contact type | plug | |
| Connection | crimp connection | |
| Rated voltage | 24 V | |
| Number of rows | 4 | |
| Type of locking | Yes | |
| Pin number | 31 pole | |
| Additional parts | unequipped | |
| Colour | black | |
| Version | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85389011 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
