1718167-1 | AMP

Plug, unequipped, 10 pole, straight, 2 rows, black, 1718167-1

Order No.: 36P2907
EAN: 4099889899344
MPN:
1718167-1

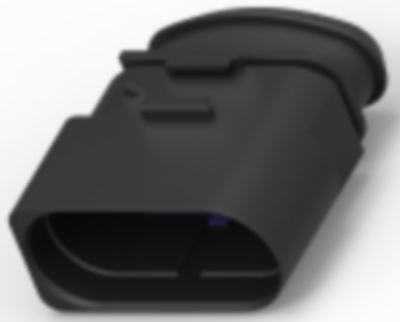

1718167-1 AMP Automotive Power Connectors Image 1

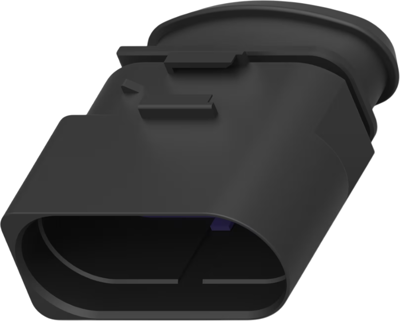

1718167-1 AMP Automotive Power Connectors Image 2

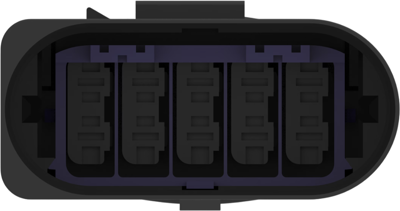

1718167-1 AMP Automotive Power Connectors Image 3

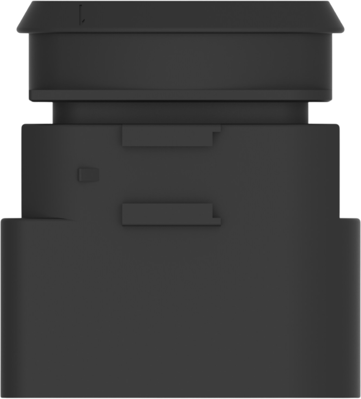

1718167-1 AMP Automotive Power Connectors Image 4

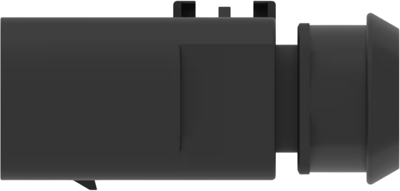

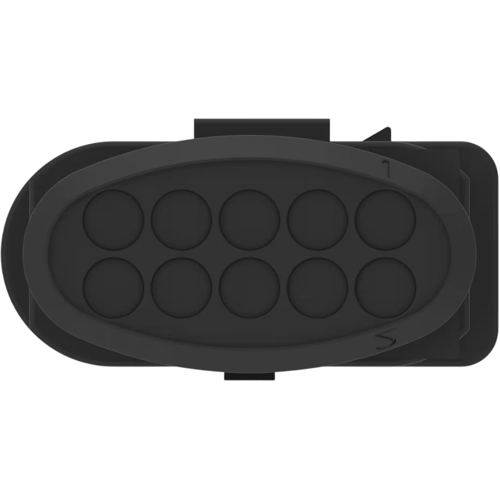

1718167-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.1424 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
571.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
1.1424 €

Plug housing, 1718167-1, AMP

Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 10, Number of rows: 2, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT GF, Primary product color: black, Mating tab width: 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 6 mm, Row-to-row spacing: 3.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, Operating temperature range: -40-130 °C, Circuit application: signal, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 12 V
Pin number 10 pole
Connection crimp connection
Grid 6 mm
Number of rows 2
Contact type plug
Additional parts unequipped
Logistics
Customs tariff number 85389011
Country of origin TH
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
