1717675-3 | AMP

Socket, 6 pole, straight, 2 rows, yellow, 1717675-3

Order No.: 71P3181
EAN: 4099889446654
MPN:
1717675-3
Series: AMPSEAL

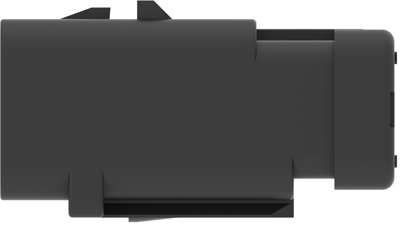

1717675-3 AMP Automotive Power Connectors Image 1

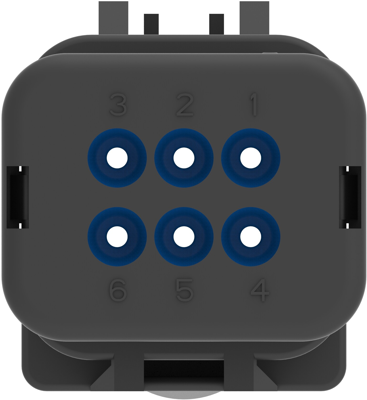

1717675-3 AMP Automotive Power Connectors Image 2

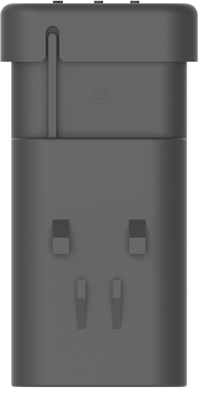

1717675-3 AMP Automotive Power Connectors Image 3

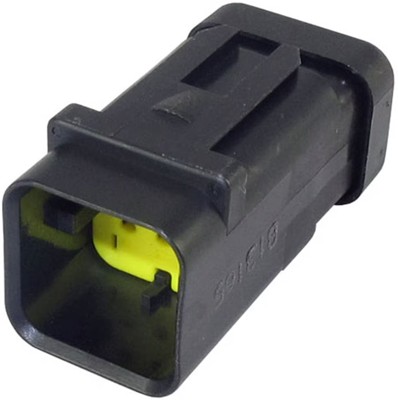

1717675-3 AMP Automotive Power Connectors Image 4

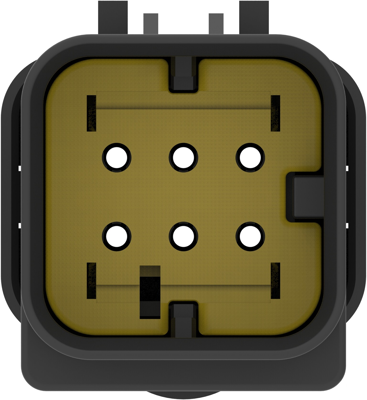

1717675-3 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
5.3550 € *
Available in 5 Days: 3,180 pcs. - if ordered today
Total Price:
5.36 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3550 €
10 pcs.
4.9266 €
50 pcs.
4.4387 €
100 pcs.
3.9865 €
*incl. VAT plus shipping costs
Subject to prior sale

Housing for male terminals, 1717675-3, AMP

Housing for male terminal, Wire-to-Wire, 6 Position, 4.5 mm Centerline, Sealable, Yellow, Cable mount (Free-Hanging).

Features

  • In-line mount
  • Rectangular, thermoplastic housing
  • Integrated latch for mating
  • Integrated Primary Latch Reinforcement (PLR) confirms contact alignment and retention
Technical specifications
Colour yellow
Type of locking Yes
Rated current 13 A
Grid 4.5 mm
Pin number 6 pole
Version straight
Connection crimp connection
Contact type socket
Rated voltage 250 V
Number of rows 2
Logistics
Country of origin CN
Customs tariff number 85442000
Compliance
Date of RoHS guidelines 3/31/15
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane
SVHC free No
RoHS conform Yes
