1717675-2 | AMP

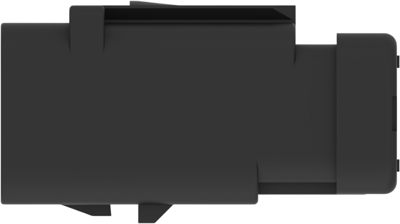

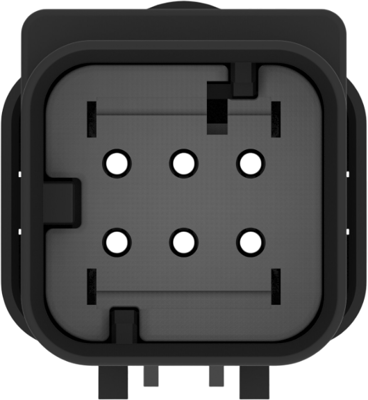

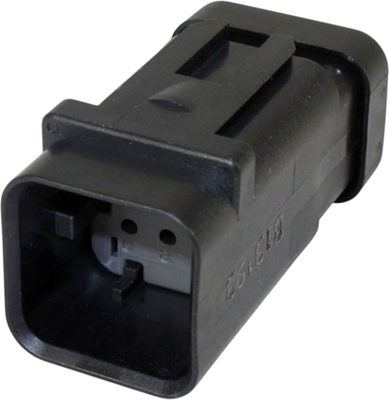

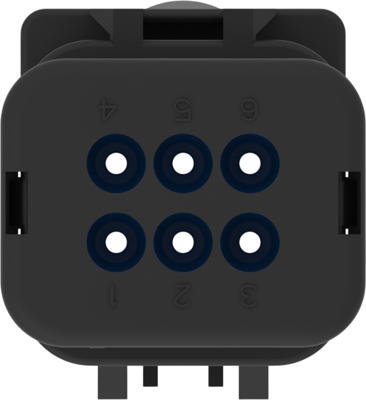

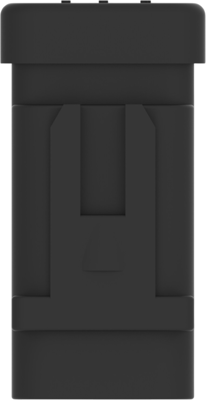

Plug, unequipped, 6 pole, straight, 2 rows, gray, 1717675-2
Order No.: 36P3910
EAN: 4099889904048
MPN:
1717675-2
Unit Price (€ / pc.)
5.7239 € *
Standard delivery time from the manufacturer is: 17 Weeks
Plug housing, 1717675-2, AMP
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 6, Number of rows: 2, Operating voltage: 250 VDC, Nominal voltage architecture: 12 V, 24 V, 42 V, 48 V, 80 V, 90 V, 125 V, 240 V, Body material: PBT, Primary product color: gray, Mating pin diameter: 1.5 mm, Mating alignment type: polarized, Centerline (pitch): 4.5 mm, Row-to-row spacing: 5.3 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, UL flammability rating: UL 94HB, Packaging method: bag, Connector position assurance capable: yes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | crimp connection | |
| Colour | gray | |
| Additional parts | unequipped | |
| Pin number | 6 pole | |
| Contact type | plug | |
| Type of locking | Yes | |
| Rated voltage | 250 V | |
| Version | straight | |
| Rated current | 13 A | |
| Number of rows | 2 | |
| Grid | 4.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85389011 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
