1612120-3 | AMP

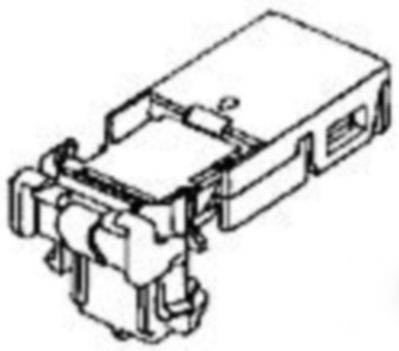

Socket, unequipped, 2 pole, angled, 1 row, orange, 1612120-3
Order No.: 35P9064
EAN: 4099889888744
MPN:
1612120-3
Unit Price (€ / pc.)
0.357 € *
Available in 5 Days: 7,200 pcs. - if ordered today
Socket housing, 1612120-3, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Number of positions: 2, Number of rows: 1, Body material: PBT, Primary product color: Orange, Mating pin diameter: 1 mm, Mating alignment type: polarized, Centerline (pitch): 3.1 mm, Product height: 29.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, Operating temperature range: -30-80 °C, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.1 mm | |
| Contact type | socket | |
| Additional parts | unequipped | |
| Colour | orange | |
| Number of rows | 1 | |
| Connection | crimp connection | |
| Pin number | 2 pole | |
| Version | angled | |
| Type of locking | No | |
| Rated voltage | 12 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
