1565287-1 | AMP

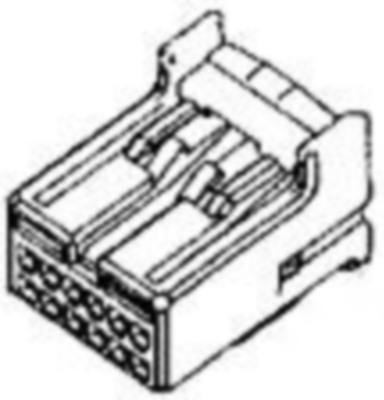

Socket, unequipped, 12 pole, straight, 2 rows, natural, 1565287-1
Order No.: 35P8616
EAN: 4099889886689
MPN:
1565287-1
Unit Price (€ / pc.)
0.6664 € *
Available in 5 Days: 2,745 pcs. - if ordered today
Socket housing, 1565287-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 12, Number of rows: 2, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: natural, Mating tab width: 0.64 mm, Mating alignment type: polarized, Centerline (pitch): 2.2 mm, Row-to-row spacing: 4.2 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.2 mm | |
| Contact type | socket | |
| Connection | crimp connection | |
| Rated voltage | 12 V | |
| Number of rows | 2 | |
| Type of locking | Yes | |
| Pin number | 12 pole | |
| Additional parts | unequipped | |
| Colour | natural | |
| Version | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
