1534399-1 | AMP

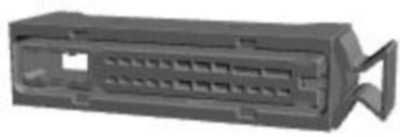

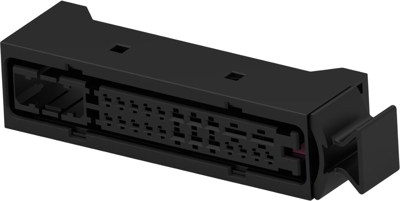

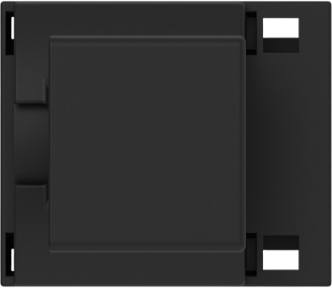

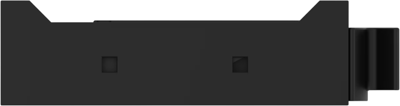

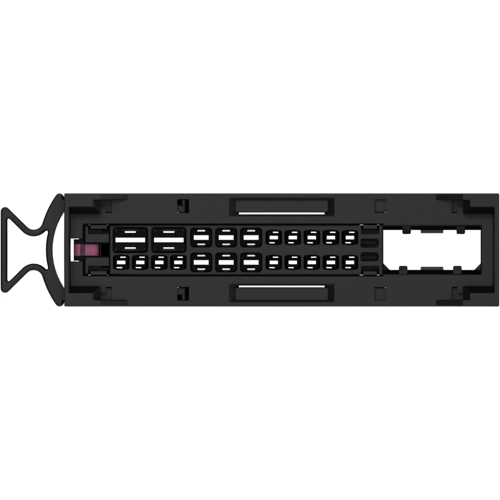

Socket, unequipped, 32 pole, straight, 2 rows, black, 1534399-1
Order No.: 35P8884
EAN: 4099889888393
MPN:
1534399-1
Unit Price (€ / pc.)
6.8663 € *
Standard delivery time from the manufacturer is: 9 Weeks
Socket housing, 1534399-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 32, Number of rows: 2, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT GF, Primary product color: black, Mating tab width: 0.63 mm, Mating alignment type: polarized, Product height: 25 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Packaging method: carton, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | socket | |
| Rated voltage | 12 V | |
| Number of rows | 2 | |
| Type of locking | Yes | |
| Pin number | 32 pole | |
| Additional parts | unequipped | |
| Colour | black | |
| Version | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
