1534188-1 | AMP

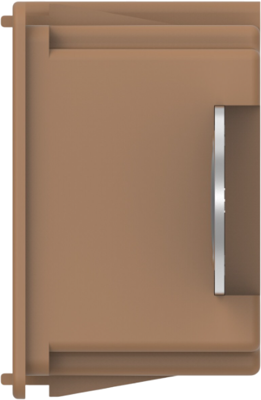

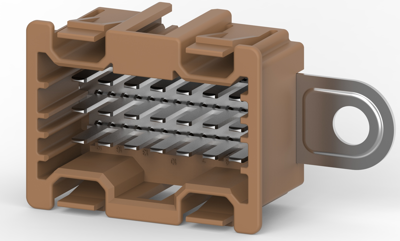

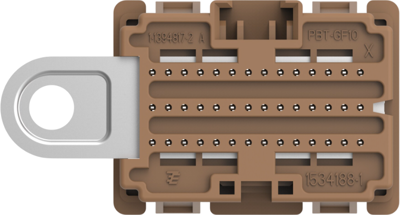

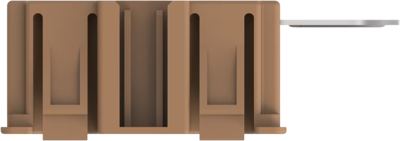

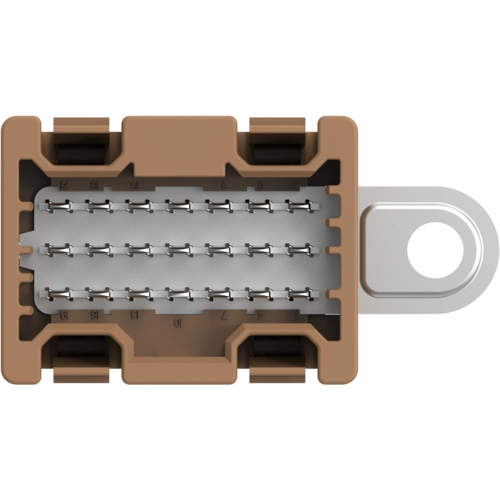

Plug, 21 pole, straight, 3 rows, brown, 1534188-1
Unit Price (€ / pc.)
10.1150 € *
Available in 5 Days: 270 pcs. - if ordered today
Total Price:
10.12 € *
Price list
Quantity
Price per unit*
1 pcs.
10.1150 €
10 pcs.
9.3891 €
25 pcs.
8.7703 €
50 pcs.
7.9730 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB mount header, 1534188-1, AMP
Hybrid Header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of positions: 21, PCB mount orientation: vertical, Number of rows: 3, Operating voltage: 35 VDC, Primary product color: Brown, Mating tab width: 2.8 mm, Mating tab thickness: 0.8 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: mounting hole, Centerline (pitch): 5 mm, Product Width: 33.7 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Shielded: no, Circuit application: signal, Packaging quantity: 330
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 35 V | |
| Pin number | 21 pole | |
| Version | straight | |
| Colour | brown | |
| Grid | 5 mm | |
| Type of locking | No | |
| Contact type | plug | |
| Number of rows | 3 | |
| Connection | solder connection | |
| contact surface | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
