1452303-1 | AMP

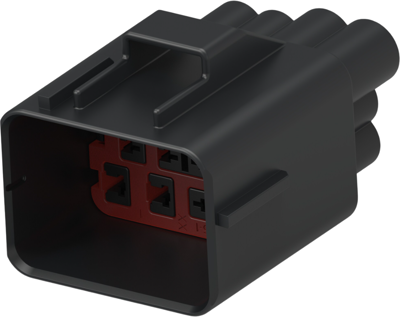

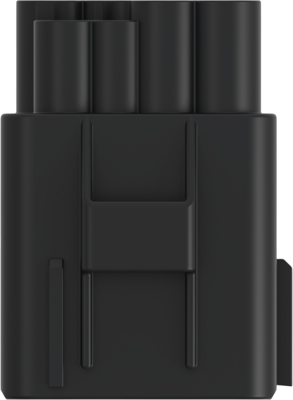

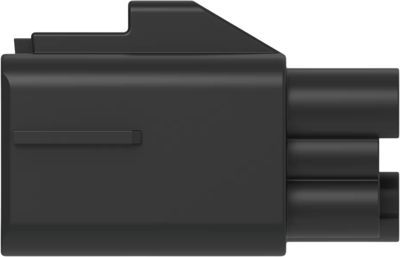

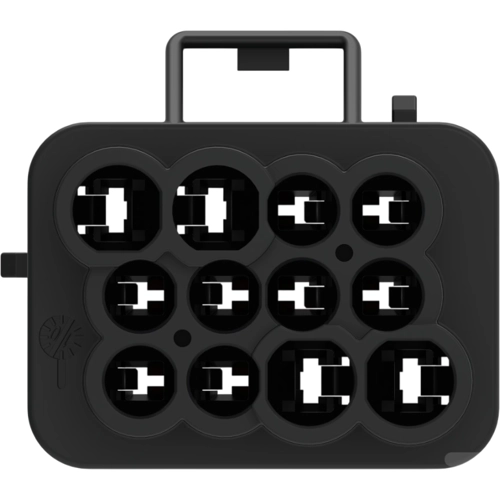

Plug, unequipped, 12 pole, straight, 3 rows, black, 1452303-1
Unit Price (€ / pc.)
2.3324 € *
Available in 5 Days: 9,030 pcs. - if ordered today
Total Price:
11.66 € *
Price list
Quantity
Price per unit*
5 pcs.
2.3324 €
10 pcs.
2.1539 €
25 pcs.
2.0111 €
50 pcs.
1.8207 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug housing, 1452303-1, AMP
Row-to-row spacing: 4.5 mm, Connector & housing type: Housing for Male Terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: yes, Number of positions: 12, Number of rows: 3, Nominal voltage architecture: 12 V, Operating voltage: 14 VDC, Cable exit angle: 180°, Body material: PBT GF, Primary product color: black, Mating tab width: 1.5 mm, 2.8 mm, Mounting feature: without, Centerline (pitch): 5.7 mm, 5.8 mm, 6.7 mm, Height: 29.55 mm, Length: 31.8 mm, Width: 45.9 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.7 mm | |
| Contact type | plug | |
| Version | straight | |
| Rated voltage | 14 V | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 3 | |
| Colour | black | |
| Pin number | 12 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
