1452015-2 | AMP

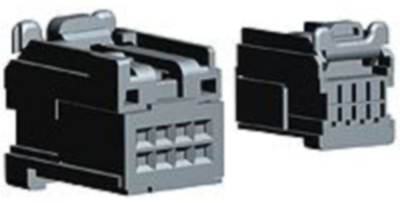

Socket, unequipped, 12 pole, straight, 2 rows, black, 1452015-2
Order No.: 35P9483
EAN: 4099889889956
MPN:
1452015-2
Unit Price (€ / pc.)
1.3447 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
1.34 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3447 €
10 pcs.
1.2495 €
25 pcs.
1.1662 €
50 pcs.
1.0591 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, 1452015-2, AMP
Row-to-row spacing: 4.5 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Number of positions: 12, Number of rows: 2, Nominal voltage architecture: 12 V, Operating voltage: 14 VDC, Cable exit angle: 180°, Body material: PA GF, Primary product color: black, Mating tab width: 0.64 mm, Mounting feature: without, Centerline (pitch): 2.54 mm, Height: 15.97 mm, Length: 18.55 mm, Width: 20.22 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, Packaging quantity: 2145, Serviceable: yes, Connector position assurance capable: yes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Contact type | socket | |
| Connection | crimp connection | |
| Rated voltage | 14 V | |
| Number of rows | 2 | |
| Type of locking | Yes | |
| Pin number | 12 pole | |
| Additional parts | unequipped | |
| Colour | black | |
| Version | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
