1438992-1 | AMP

Socket, unequipped, 5 pole, straight, 1 row, black, 1438992-1

Order No.: 36P1018
EAN: 4099889892505
MPN:
1438992-1
Series: MQS

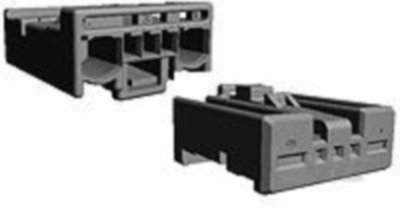

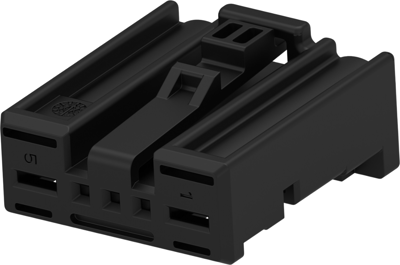

1438992-1 AMP Automotive Power Connectors Image 1

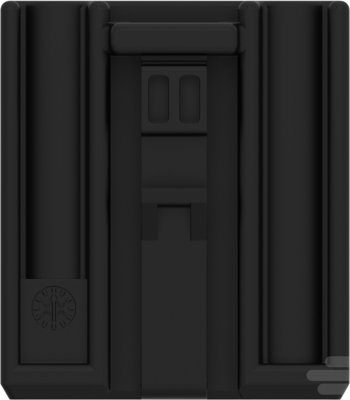

1438992-1 AMP Automotive Power Connectors Image 2

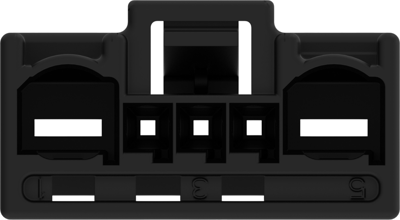

1438992-1 AMP Automotive Power Connectors Image 3

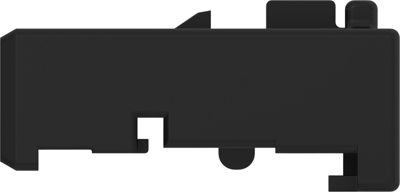

1438992-1 AMP Automotive Power Connectors Image 4
Image may differ
Unit Price (€ / pc.)
0.5950 € *
Available in 5 Days: 5,862 pcs. - if ordered today
Total Price:
2.97 € *
Price list
Quantity
Price per unit*
5 pcs.
0.5950 €
10 pcs.
0.5593 €
25 pcs.
0.5117 €
50 pcs.
0.4641 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 1438992-1, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: yes, Primary locking feature: on the terminal, Number of positions: 5, Number of rows: 1, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT GF, Primary product color: black, Connector code: Z, Mating tab width: 0.63 mm, Strain relief: no, Centerline (pitch): 2.54 mm, Product height: 9.35 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: package, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type socket
Version straight
Rated voltage 12 V
Type of locking Yes
Additional parts unequipped
Number of rows 1
Colour black
Pin number 5 pole
Connection crimp connection
Logistics
Property Value
Country of origin TW
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
