1438426-3 | AMP

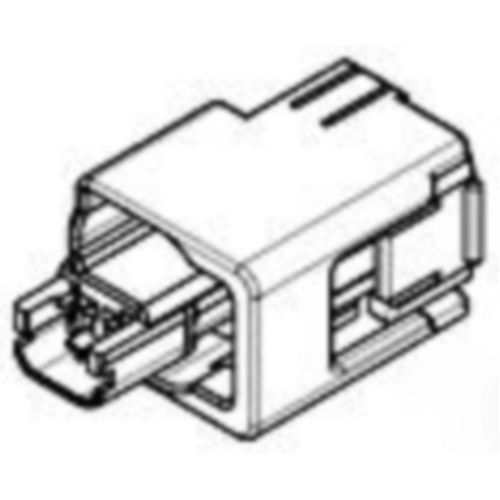

Socket, unequipped, 2 pole, straight, 1 row, gray, 1438426-3
Order No.: 35P8808
EAN: 4099889887891
MPN:
1438426-3
Unit Price (€ / pc.)
2.142 € *
Standard delivery time from the manufacturer is: 29 Weeks
Socket housing, 1438426-3, AMP
Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Number of positions: 2, Number of rows: 1, Body material: Other, Primary product color: Gray, Mating tab width: 0.64 mm, Strain relief: no, Centerline (pitch): 2.54 mm, Product height: 35.3 mm, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: package, Connector position assurance capable: yes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | straight | |
| Colour | gray | |
| Type of locking | No | |
| Pin number | 2 pole | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Rated voltage | 18 V | |
| Contact type | socket | |
| Grid | 2.54 mm | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
