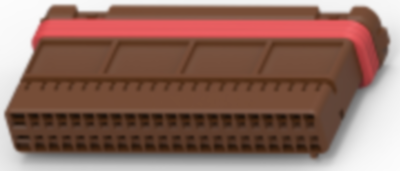

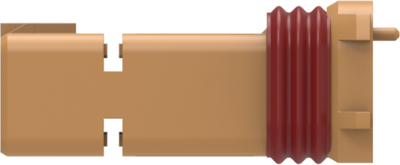

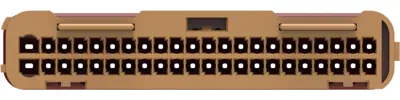

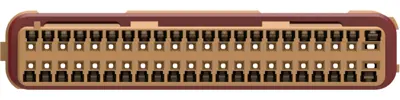

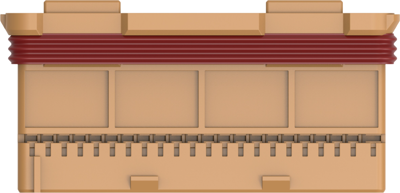

Socket housing, 1394915-2, AMP
Row-to-row spacing: 3 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: yes, Hybrid connector: yes, Number of positions: 30, Number of rows: 2, Operating voltage: 12 VAC, Cable exit angle: 180°, Body material: PA GF, Primary product color: Brown, Connector code: B, Mating tab width: 0.63 mm, Mounting feature: without, Polarized, Centerline (pitch): 2.5 mm, 3.5 mm, Height: 12.3 mm, Length: 60.65 mm, Width: 30.1 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, Operating temperature range: -40-130 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Serviceable: yes, Connector position assurance capable: no
