1394522-1 | AMP
Socket, unequipped, 42 pole, angled, 2 rows, black, 1394522-1
Order No.: 36P4359
EAN: 4099889906479
MPN:
1394522-1
Unit Price (€ / pc.)
7.5565 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
7.56 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5565 €
10 pcs.
7.0091 €
25 pcs.
6.5450 €
50 pcs.
5.9500 €
*incl. VAT plus shipping costs
Subject to prior sale

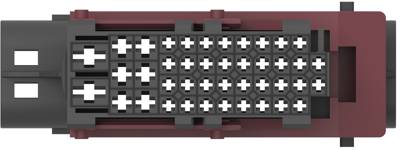

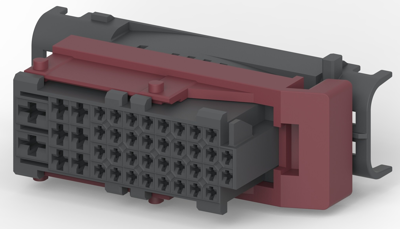

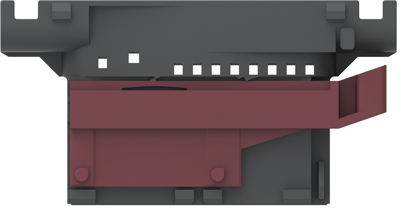

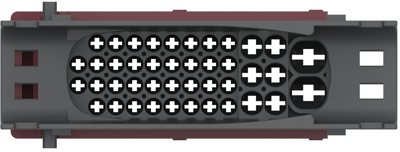

Socket housing, 1394522-1, AMP
Row-to-row spacing: 5.5 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: yes, Number of positions: 42, Cable exit angle: 90°, Body material: PBT GF, Primary product color: black, Connector code: 1, Mating tab width: 1.6 mm, 2.8 mm, 5.8 mm, Mounting feature: without, Centerline (pitch): 4 mm, Height: 27.8 mm, Length: 101.55 mm, Width: 43.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, -40-85 °C, Circuit application: signal, Degree of protection: IP67, UL flammability rating: UL 94-HB, Packaging method: carton, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 4 mm | |
| Contact type | socket | |
| Version | angled | |
| Rated voltage | 24 V | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 2 | |
| Colour | black | |
| Pin number | 42 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
