1394090-1 | AMP
Plug, 6 pole, angled, 1 row, black, 1394090-1
Order No.: 36P1253
EAN: 4099889894394
MPN:
1394090-1
Unit Price (€ / pc.)
2.4038 € *
Available in 5 Days: 34,364 pcs. - if ordered today
Total Price:
2.40 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4038 €
10 pcs.
2.2372 €
25 pcs.
2.0825 €
50 pcs.
1.8921 €
*incl. VAT plus shipping costs
Subject to prior sale

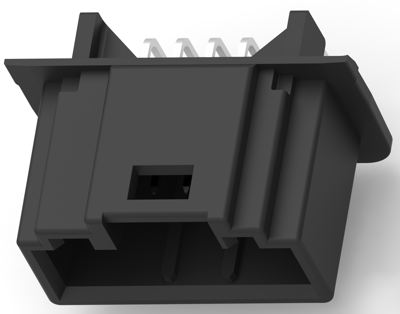

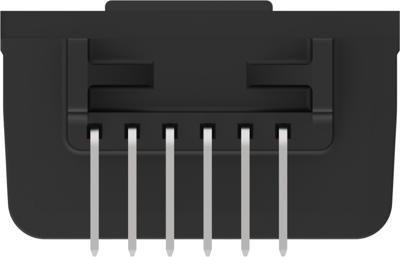

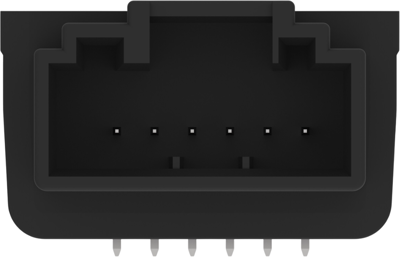

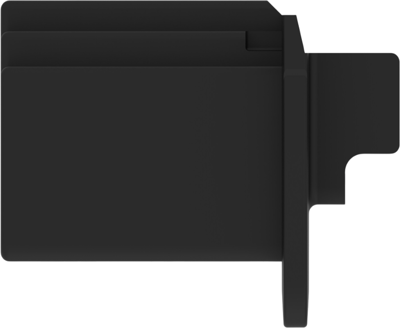

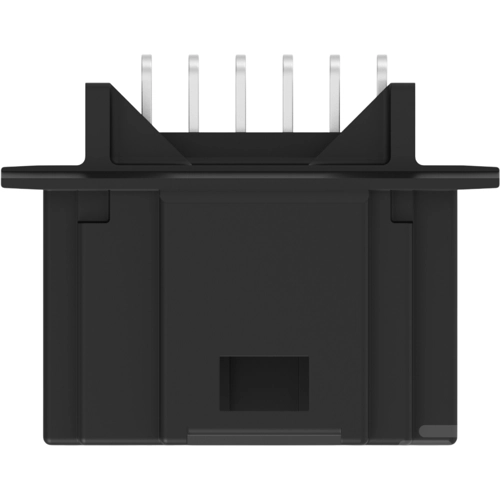

PCB mount header, 1394090-1, AMP
Hybrid Header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 6, Number of positions: 6, PCB mount orientation: horizontal, Number of rows: 1, Primary product color: black, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention: without, Centerline (pitch): 2.85 mm, Product length: 30.2 mm, Shielded: no, Circuit application: signal, Packaging quantity: 432, Interface number: 114-18601
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Number of rows | 1 | |
| Connection | solder connection | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Version | angled | |
| Pin number | 6 pole | |
| Contact type | plug | |
| Grid | 2.85 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
