1379914-1 | AMP

Socket, unequipped, 20 pole, straight, 2 rows, black, 1379914-1

Order No.: 60F111
MPN:
1379914-1
Series: MQS

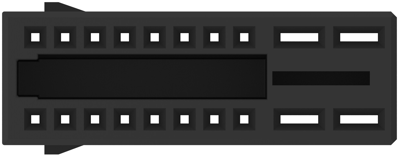

1379914-1 AMP Automotive Power Connectors Image 1

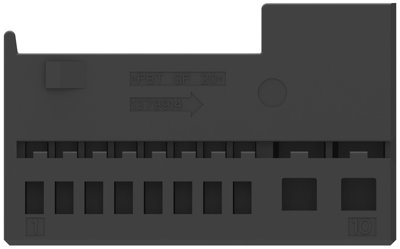

1379914-1 AMP Automotive Power Connectors Image 2

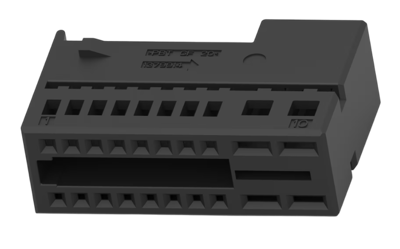

1379914-1 AMP Automotive Power Connectors Image 3

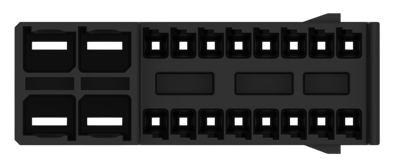

1379914-1 AMP Automotive Power Connectors Image 4

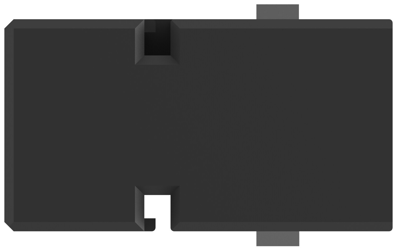

1379914-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
0.5117 € *
Standard delivery time from the manufacturer is: 33 Weeks
Total Price:
0.51 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5117 €
10 pcs.
0.4046 €
50 pcs.
0.3332 €
100 pcs.
0.2630 €
*incl. VAT plus shipping costs
Subject to prior sale

Connector housing female, 1379914-1, AMP

20 Position Housing, Housing for Female Terminals, Wire-to-Board, 2.54 mm / 5.08 mm [.1 in / .2 in] Centerline, Black, Wire & Cable, Signal.

Technical specifications
Filter Property Value
Colour black
Type of locking Yes
Grid 2.54 mm
Connection crimp connection
Version straight
Rated voltage 30 V
Additional parts unequipped
Pin number 20 pole
Contact type socket
Rated current 18 A
Number of rows 2
Logistics
Property Value
Customs tariff number 85389099
Country of origin MA
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
