1379731-1 | AMP

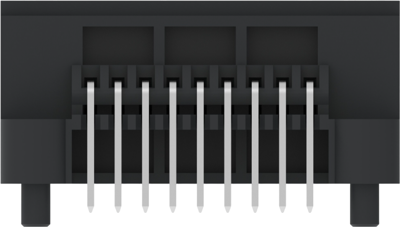

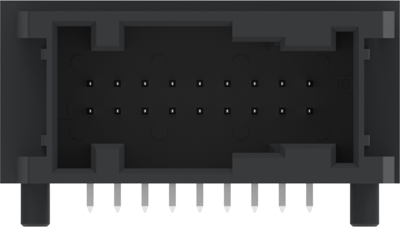

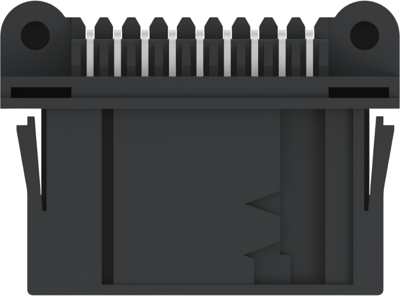

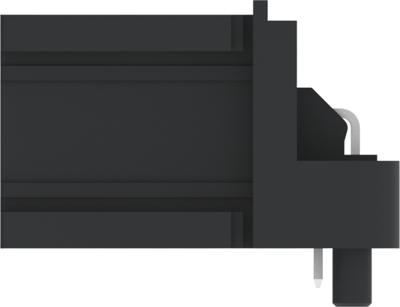

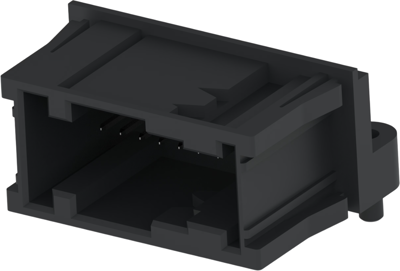

Plug, 18 pole, angled, 2 rows, black, 1379731-1
Order No.: 36P1161
EAN: 4099889893670
MPN:
1379731-1
Unit Price (€ / pc.)
2.6894 € *
Standard delivery time from the manufacturer is: 22 Weeks
PCB mount header, 1379731-1, AMP
Hybrid Header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of positions: 18, PCB mount orientation: horizontal, Number of rows: 2, Operating voltage: 12 VDC, Primary product color: black, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention: without, Centerline (pitch): 2.54 mm, Profile Height from PCB: 17 mm, Shielded: no, Circuit application: signal, UL flammability rating: UL 94HB, Packaging type: tray, Interface number: 1801400-PSA
Technical specifications
| Version | angled | |
| Colour | black | |
| Type of locking | Yes | |
| Rated voltage | 12 V | |
| contact surface | tin-plated | |
| Pin number | 18 pole | |
| Connection | solder connection | |
| Grid | 2.54 mm | |
| Number of rows | 2 | |
| Contact type | plug |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | IN |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
