1379217-1 | AMP

Socket, unequipped, 5 pole, straight, 1 row, black, 1379217-1

Order No.: 35P9944
EAN: 4099889891232
MPN:
1379217-1
Series: MQS
1379217-1 AMP Automotive Power Connectors Image 1

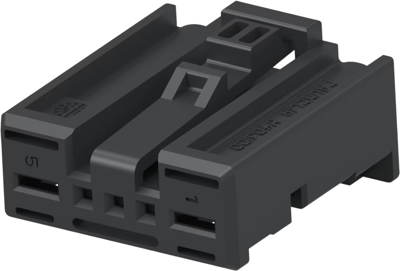

1379217-1 AMP Automotive Power Connectors Image 2

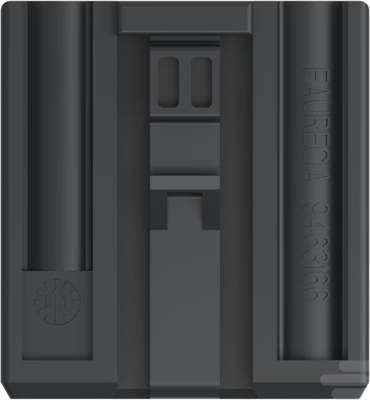

1379217-1 AMP Automotive Power Connectors Image 3

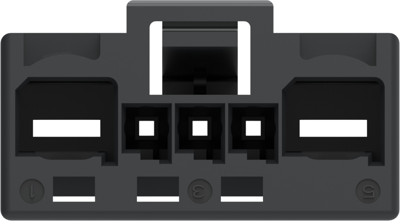

1379217-1 AMP Automotive Power Connectors Image 4
Image may differ
Unit Price (€ / pc.)
0.8330 € *
Standard delivery time from the manufacturer is: 33 Weeks
Total Price:
0.83 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8330 €
10 pcs.
0.7497 €
50 pcs.
0.6783 €
100 pcs.
0.6069 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 1379217-1, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: yes, Primary locking feature: on the terminal, Number of positions: 5, Number of rows: 1, Nominal voltage architecture: 12 V, Operating voltage: 16 VDC, Cable exit angle: 180°, Body material: PBT GF, Primary product color: black, Connector code: Z, Mating tab width: 0.63 mm, Mounting feature: without, Polarized, Centerline (pitch): 2.54 mm, Length: 19 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, UL flammability rating: UL 94-HB, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 16 V
Pin number 5 pole
Connection crimp connection
Grid 2.54 mm
Number of rows 1
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin IN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
