1376886-1 | AMP

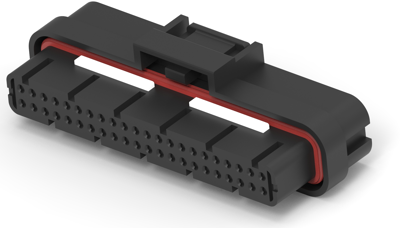

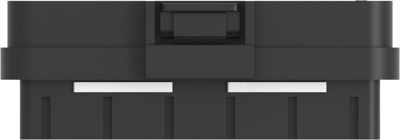

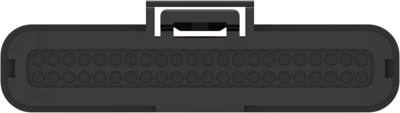

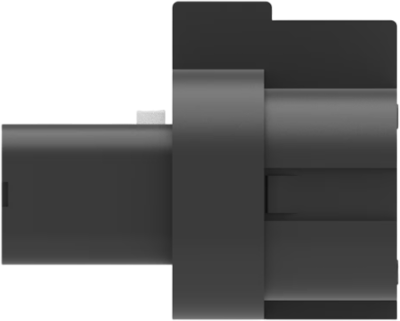

Plug, 44 pole, straight, 2 rows, black, 1376886-1
Unit Price (€ / pc.)
8.2824 € *
Standard delivery time from the manufacturer is: 16 Weeks
Socket housing, 1376886-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, Sealable: yes, Primary locking feature: Contact Retainer, Connector & contact terminates to: printed circuit board, Number of positions: 44, Number of rows: 2, Nominal voltage architecture: 250 V, Primary product color: black, Mating pin diameter: 1 mm, Contact Current Rating (Max): 7 A, Centerline (pitch): 3.5 mm, Row-to-row spacing: 4 mm, Operating temperature (max): 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Connector position assurance capable: no
Technical specifications
| Version | straight | |
| Colour | black | |
| Type of locking | Yes | |
| Rated voltage | 250 V | |
| Pin number | 44 pole | |
| Connection | crimp connection | |
| Grid | 3.5 mm | |
| Number of rows | 2 | |
| Rated current | 7 A | |
| Contact type | plug |
Download
Logistics
| Customs tariff number | 85389091 |
| Country of origin | TH |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
