1376515-1 | AMP

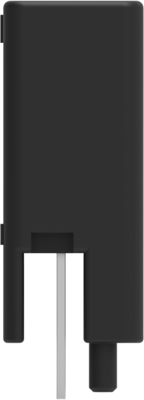

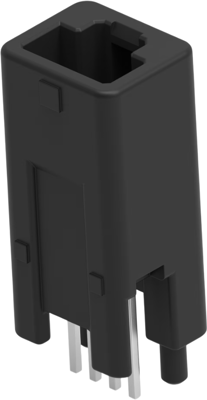

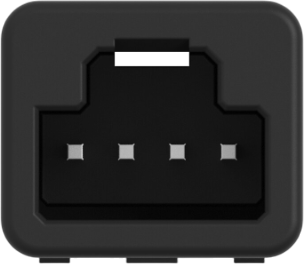

Plug, 4 pole, straight, 1 row, black, 1376515-1
Order No.: 35P8716
EAN: 4099889887594
MPN:
1376515-1
Unit Price (€ / pc.)
1.6422 € *
Available in 5 Days: 1,160 pcs. - if ordered today
Total Price:
8.21 € *
Price list
Quantity
Price per unit*
5 pcs.
1.6422 €
10 pcs.
1.5232 €
25 pcs.
1.4161 €
50 pcs.
1.2852 €
*incl. VAT plus shipping costs
Subject to prior sale
Hybrid Header, 1376515-1, AMP
Hybrid Header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 4, Number of positions: 4, PCB mount orientation: vertical, Number of rows: 1, Nominal voltage architecture: 12 V, Primary product color: black, Mating tab width: 0.64 mm, Mating tab thickness: 0.64 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention: without, Centerline (pitch): 1.8 mm, Width: 11.8 mm, Operating temperature (max): 100 °C, 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, Operating temperature range: -30-100 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging quantity: 40, Interface number: 1318620-2
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 1.8 mm | |
| Contact type | plug | |
| contact surface | tin-plated | |
| Version | straight | |
| Rated voltage | 12 V | |
| Type of locking | Yes | |
| Number of rows | 1 | |
| Colour | black | |
| Pin number | 4 pole | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
