1355505-1 | AMP

Plug, 12 pole, angled, 2 rows, black, 1355505-1

Order No.: 36P1257
EAN: 4099889894424
MPN:
1355505-1
Series: MQS

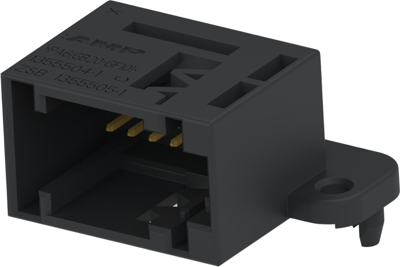

1355505-1 AMP Automotive Power Connectors Image 1

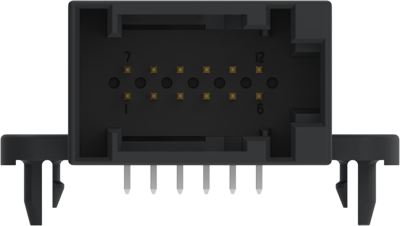

1355505-1 AMP Automotive Power Connectors Image 2

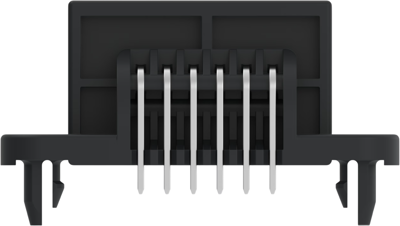

1355505-1 AMP Automotive Power Connectors Image 3

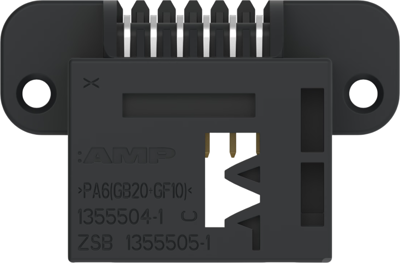

1355505-1 AMP Automotive Power Connectors Image 4
Image may differ
Unit Price (€ / pc.)
2.5704 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
2,220.83 € *
*incl. VAT plus shipping costs
Subject to prior sale
864 pcs.
2.5704 €

Hybrid Header, 1355505-1, AMP

Hybrid Header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 12, Number of positions: 12, PCB mount orientation: horizontal, Number of rows: 2, Nominal voltage architecture: 12 V, Primary product color: black, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: boardlock, Centerline (pitch): 2.54 mm, PCB thickness (recommended): 0.8-1.6 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, -40-85 °C, Circuit application: power & Signal, UL flammability rating: UL 94-HB, Packaging quantity: 432, Interface number: 968473

Technical specifications
Version angled
Colour black
Type of locking No
Rated voltage 12 V
contact surface tin-plated
Pin number 12 pole
Connection solder connection
Grid 2.54 mm
Number of rows 2
Contact type plug
Logistics
Customs tariff number 85366990
Country of origin TW
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
