1318801-1 | AMP

Socket, unequipped, 7 pole, straight, 1 row, black, 1318801-1

Order No.: 35P8652
EAN: 4099889887020
MPN:
1318801-1

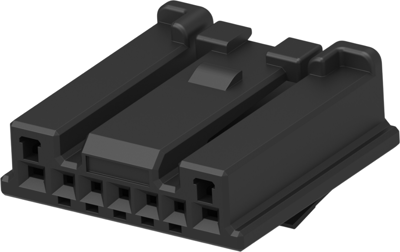

1318801-1 AMP Automotive Power Connectors Image 1

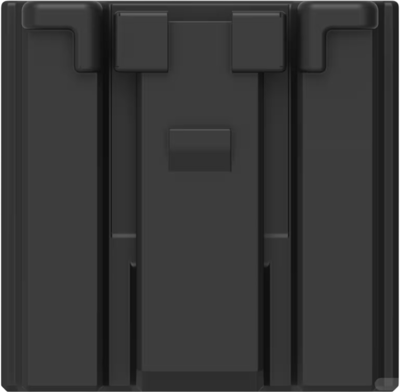

1318801-1 AMP Automotive Power Connectors Image 2

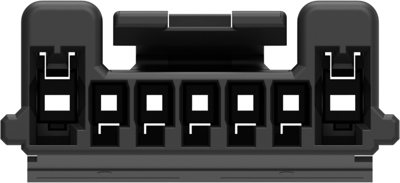

1318801-1 AMP Automotive Power Connectors Image 3

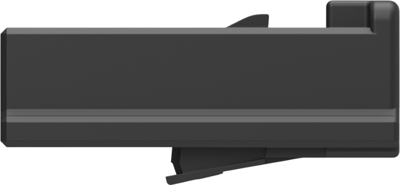

1318801-1 AMP Automotive Power Connectors Image 4
Image may differ
Unit Price (€ / pc.)
0.7973 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
0.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.7973 €

Socket housing, 1318801-1, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: yes, Number of positions: 7, Number of rows: 1, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: black, Mating tab width: 0.64 mm, 1 mm, Mating alignment type: polarized, Centerline (pitch): 2.2 mm, 13.8 mm, Product height: 8.8 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -30-100 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version straight
Colour black
Type of locking No
Rated voltage 12 V
Pin number 7 pole
Connection crimp connection
Grid 2.2 mm
Number of rows 1
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin TW
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
