1318772-2 | AMP

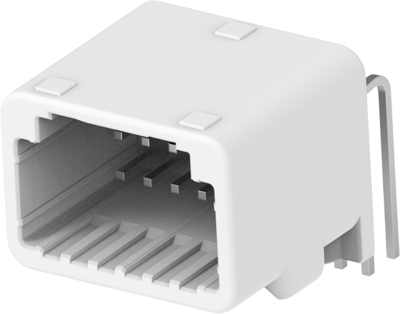

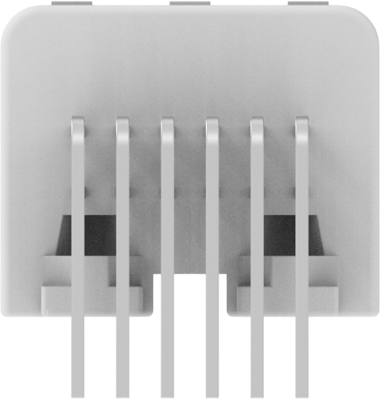

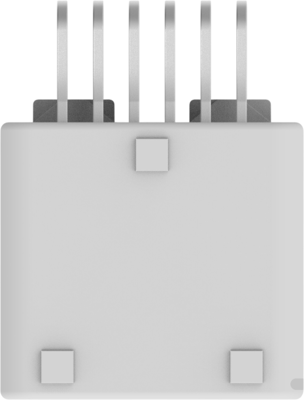

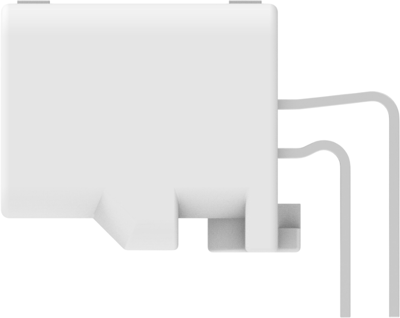

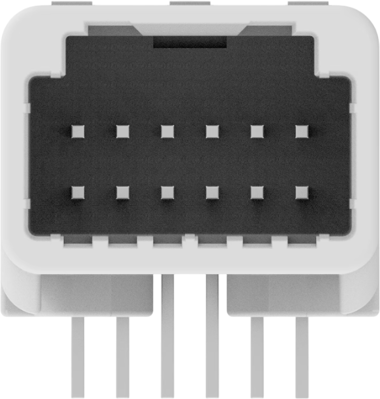

Plug, 12 pole, angled, 2 rows, natural, 1318772-2
Order No.: 35P8724
EAN: 4099889887679
MPN:
1318772-2
Unit Price (€ / pc.)
1.4756 € *
Available in 5 Days: 10,557 pcs. - if ordered today
Total Price:
7.38 € *
Price list
Quantity
Price per unit*
5 pcs.
1.4756 €
10 pcs.
1.3685 €
25 pcs.
1.2733 €
50 pcs.
1.1543 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB mount header, 1318772-2, AMP
Hybrid Header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 12, Number of positions: 12, PCB mount orientation: horizontal, Number of rows: 2, Operating voltage: 12 VDC, Primary product color: natural, Mating tab width: 0.64 mm, Mating tab thickness: 0.64 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention: without, Centerline (pitch): 2.2 mm, Product length: 24.47 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Shielded: no, Circuit application: signal, UL flammability rating: UL 94HB, Packaging quantity: 23
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.2 mm | |
| Contact type | plug | |
| contact surface | tin-plated | |
| Version | angled | |
| Rated voltage | 12 V | |
| Type of locking | Yes | |
| Number of rows | 2 | |
| Colour | natural | |
| Pin number | 12 pole | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
