1241581-1 | AMP

Socket, unequipped, 17 pole, straight, 3 rows, black, 1241581-1

Order No.: 36P4356
EAN: 4099889906455
MPN:
1241581-1

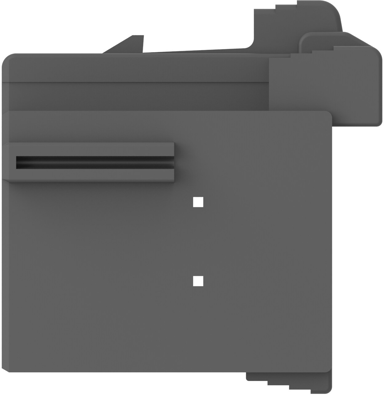

1241581-1 AMP Automotive Power Connectors Image 1

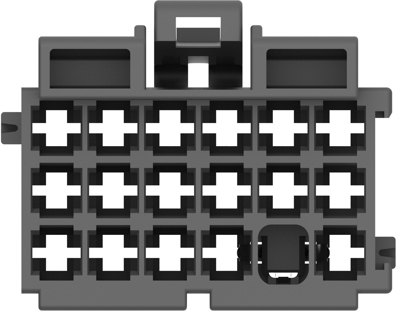

1241581-1 AMP Automotive Power Connectors Image 2

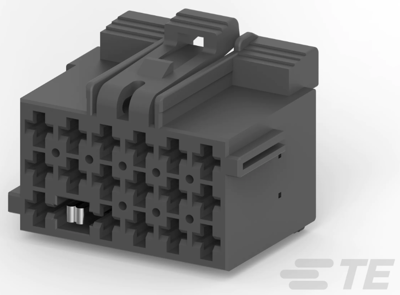

1241581-1 AMP Automotive Power Connectors Image 3

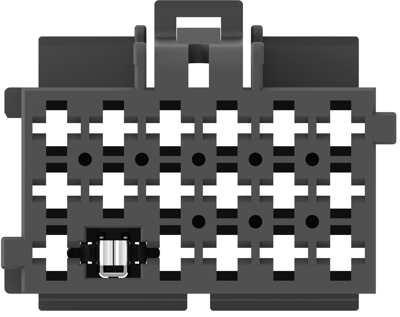

1241581-1 AMP Automotive Power Connectors Image 4

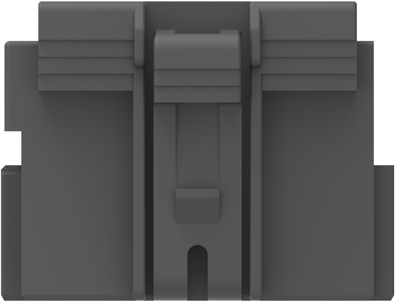

1241581-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
4.3078 € *
Available in 5 Days: 2,380 pcs. - if ordered today
Total Price:
4.31 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3078 €
10 pcs.
3.9984 €
25 pcs.
3.7247 €
50 pcs.
3.3915 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 1241581-1, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 17, Number of rows: 3, Cable exit angle: Other, Body material: PBT GF, Primary product color: black, Mating tab width: 2.8 mm, Terminal position assurance: yes, Polarized, Centerline (pitch): 5 mm, Height: 26.5 mm, Length: 31.2 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging method: carton, Serviceable: no, Connector position assurance capable: no

Technical specifications
Filter Property Value
Grid 5 mm
Connection crimp connection
Contact type socket
Version straight
Colour black
Rated voltage 14 V
Additional parts unequipped
Number of rows 3
Type of locking Yes
Pin number 17 pole
Logistics
Property Value
Customs tariff number 85389091
Country of origin MX
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
