1-969489-1 | AMP

Socket, unequipped, 6 pole, straight, 1 row, black, 1-969489-1

Order No.: 36P1092
EAN: 4099889893113
MPN:
1-969489-1
Series: MQS
1-969489-1 AMP Automotive Power Connectors Image 1

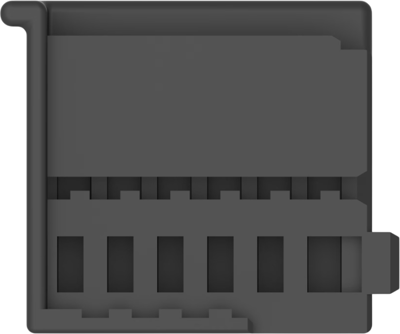

1-969489-1 AMP Automotive Power Connectors Image 2

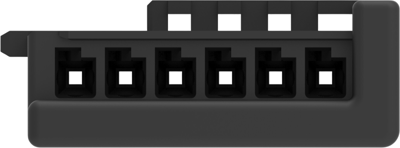

1-969489-1 AMP Automotive Power Connectors Image 3

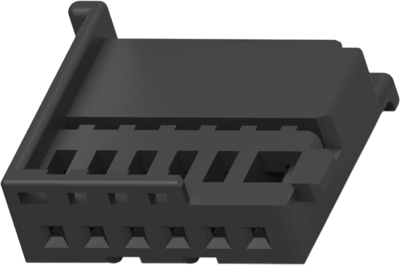

1-969489-1 AMP Automotive Power Connectors Image 4
Image may differ
Unit Price (€ / pc.)
0.3332 € *
Available in 5 Days: 2,997 pcs. - if ordered today
Total Price:
0.33 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.3332 €

Socket housing, 1-969489-1, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 6, Number of rows: 1, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT GF, Primary product color: black, Connector code: A, Mating tab width: 0.63 mm, Strain relief: no, Centerline (pitch): 2.54 mm, Product height: 8.7 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, Operating temperature range: -40-80 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: box, Serviceable: no, Connector position assurance capable: no

Technical specifications
Filter Property Value
Contact type socket
Pin number 6 pole
Grid 2.85 mm
Colour black
Version straight
Connection crimp connection
Rated voltage 12 V
Number of rows 1
Additional parts unequipped
Type of locking Yes
Logistics
Property Value
Customs tariff number 85389011
Country of origin MX
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
