1-968977-9 | AMP

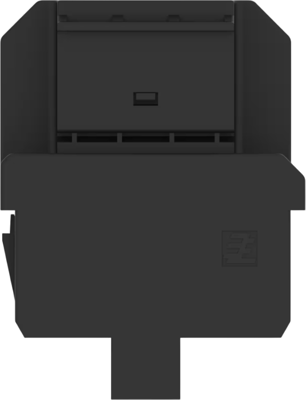

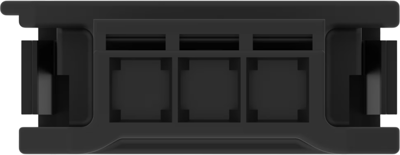

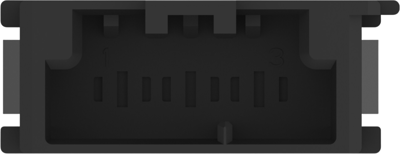

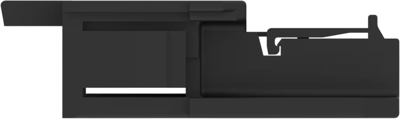

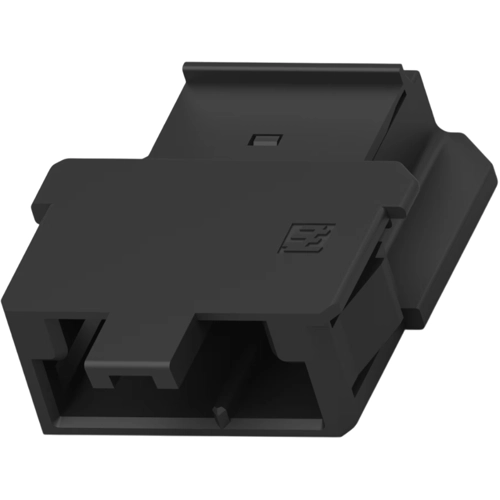

Plug, unequipped, 3 pole, straight, 1 row, black, 1-968977-9
Unit Price (€ / pc.)
1.6898 € *
Available: 100 pcs.
Available in 5 Days: 4,550 pcs. - if ordered today
Total Price:
1.69 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6898 €
10 pcs.
1.5708 €
25 pcs.
1.4637 €
50 pcs.
1.3328 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug housing, 1-968977-9, AMP
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 3, Number of rows: 1, Nominal voltage architecture: 12 V, 24 V, Operating voltage: 28 VDC, Cable exit angle: other, Body material: PA GF, Primary product color: black, Mating tab width: 2.8 mm, Mounting feature: without, Centerline (pitch): 5.5 mm, Height: 12.4 mm, Length: 32.1 mm, Width: 42 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Connection | crimp connection | |
| Rated voltage | 28 V | |
| Type of locking | Yes | |
| Version | straight | |
| Pin number | 3 pole | |
| Contact type | plug | |
| Grid | 5.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389011 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
