1-968968-1 | AMP

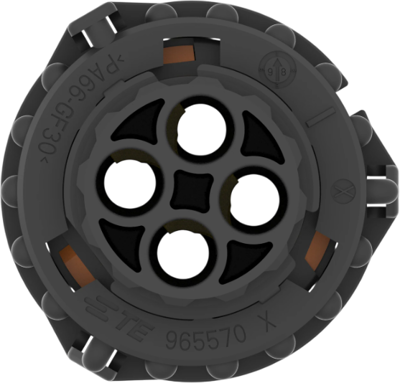

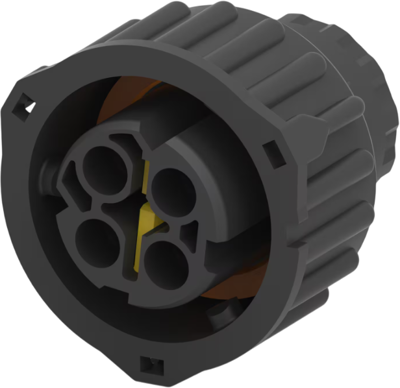

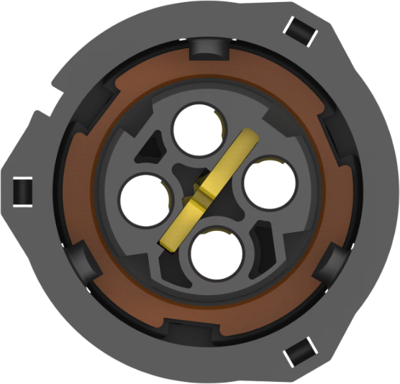

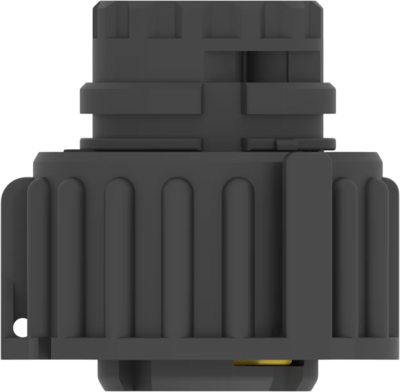

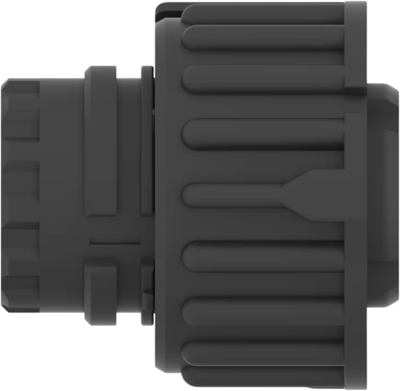

Socket, unequipped, 4 pole, straight, 2 rows, black, 1-968968-1
Order No.: 36P3998
EAN: 4099889904314
MPN:
1-968968-1
Unit Price (€ / pc.)
4.3911 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
4.39 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3911 €
10 pcs.
4.0817 €
25 pcs.
3.8080 €
50 pcs.
3.4629 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, 1-968968-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 4, Nominal voltage architecture: 12 V, 24 V, 42 V, 48 V, Body material: other, Primary product color: black, Connector code: 1, Mating pin diameter: 2.5 mm, Strain relief: no, Centerline (pitch): 7 mm, Row-to-row spacing: 7 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, UL flammability rating: UL 94HB, Packaging method: box, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 40 A | |
| Grid | 7 mm | |
| Connection | crimp connection | |
| Rated voltage | 12 V | |
| Version | straight | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | socket | |
| Number of rows | 2 | |
| Pin number | 4 pole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
