1-968718-1 | AMP

Plug, 42 pole, angled, 3 rows, black, 1-968718-1

Order No.: 36P3260
EAN: 4099889902129
MPN:
1-968718-1

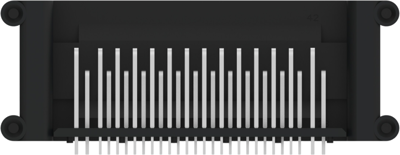

1-968718-1 AMP Automotive Power Connectors Image 1

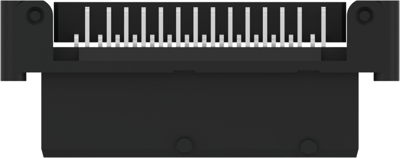

1-968718-1 AMP Automotive Power Connectors Image 2

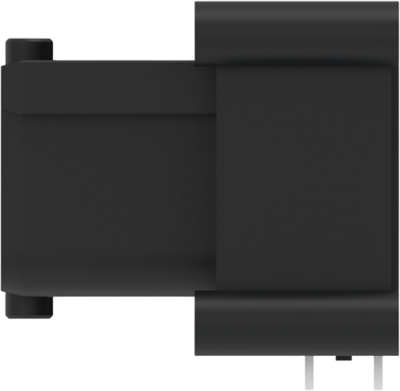

1-968718-1 AMP Automotive Power Connectors Image 3

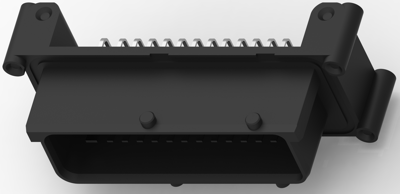

1-968718-1 AMP Automotive Power Connectors Image 4

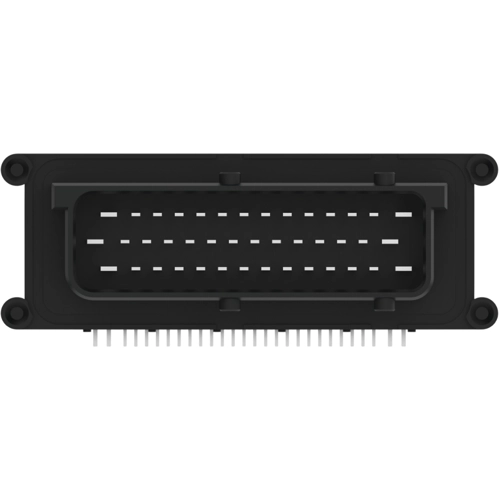

1-968718-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
17.7786 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
1,777.86 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
17.7786 €

PCB mount header, 1-968718-1, AMP

Hybrid header: yes, Sealable: yes, Connector & contact terminates to: printed circuit board, Number of sections: 1, Number of positions: 42, PCB mount orientation: horizontal, Number of rows: 3, Nominal voltage architecture: 12 V, Primary product color: black, Mating tab width: 1.6 mm, 3 mm, Mating tab thickness: 0.6 mm, 0.8 mm, Contact mating area plating material: Silver (Ag), Termination method to printed circuit board: through hole-solder, PCB mount retention type: solder tail, Centerline (pitch): 1 mm, Product length: 92 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, Shielded: no, Circuit application: signal, UL flammability rating: none, Packaging quantity: 100

Technical specifications
Filter Property Value
Version angled
Colour black
Type of locking Yes
contact surface gold-plated/silver-plated
Pin number 42 pole
Connection solder connection
Grid 1 mm
Number of rows 3
Contact type plug
Logistics
Property Value
Customs tariff number 85369010
Country of origin MX
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
