1-968322-1 | AMP

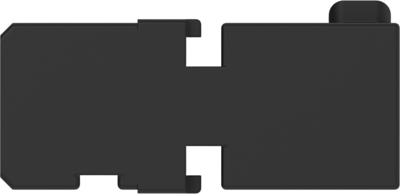

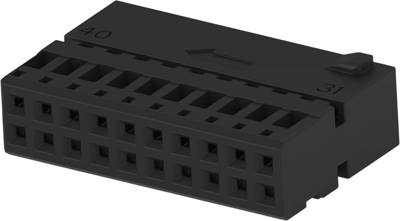

Socket, unequipped, 20 pole, straight, 2 rows, black, 1-968322-1
Order No.: 36P1107
EAN: 4099889893236
MPN:
1-968322-1
Unit Price (€ / pc.)
0.4998 € *
Available in 5 Days: 1,150 pcs. - if ordered today
Total Price:
2.50 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4998 €
10 pcs.
0.4641 €
25 pcs.
0.4403 €
50 pcs.
0.3927 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, 1-968322-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 20, Number of rows: 2, Body material: PBT GF, Primary product color: black, Connector code: A, Mating tab width: 0.63 mm, Strain relief: no, Centerline (pitch): 2.54 mm, Row-to-row spacing: 2.54 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Packaging method: box, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | crimp connection | |
| Number of rows | 2 | |
| Colour | black | |
| Type of locking | Yes | |
| Version | straight | |
| Additional parts | unequipped | |
| Pin number | 20 pole | |
| Grid | 2.54 mm | |
| Contact type | socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
