1-968318-1 | AMP

Socket, unequipped, 12 pole, straight, 2 rows, black, 1-968318-1

Order No.: 36P1069
EAN: 4099889892918
MPN:
1-968318-1
Series: MQS
1-968318-1 AMP Automotive Power Connectors
Image may differ
Unit Price (€ / pc.)
0.7616 € *
Available in 5 Days: 1,800 pcs. - if ordered today
Total Price:
0.76 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7616 €
10 pcs.
0.6902 €
50 pcs.
0.6188 €
100 pcs.
0.5593 €
*incl. VAT plus shipping costs
Subject to prior sale

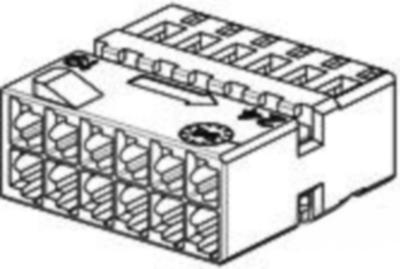

Socket housing, 1-968318-1, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 12, Number of rows: 2, Body material: PBT GF, Primary product color: black, Connector code: A, Mating tab width: 0.63 mm, Strain relief: yes, Centerline (pitch): 2.54 mm, Row-to-row spacing: 5.9 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Packaging method: bag, Serviceable: no, Connector position assurance capable: no

Technical specifications
Colour black
Type of locking Yes
Grid 2.54 mm
Pin number 12 pole
Version straight
Additional parts unequipped
Connection crimp connection
Contact type socket
Number of rows 2
Logistics
Country of origin US
Customs tariff number 85389091
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
