1-967629-6 | AMP

Plug, unequipped, 18 pole, straight, 3 rows, brown, 1-967629-6

Order No.: 36P3054
EAN: 4099889900545
MPN:
1-967629-6

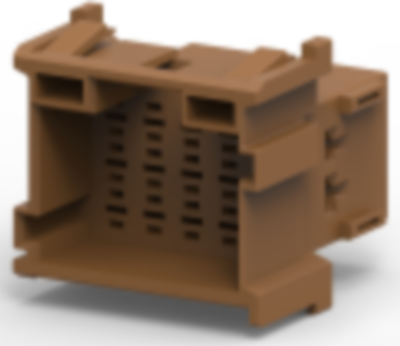

1-967629-6 AMP Automotive Power Connectors Image 1

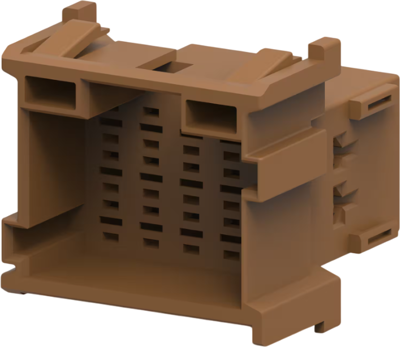

1-967629-6 AMP Automotive Power Connectors Image 2

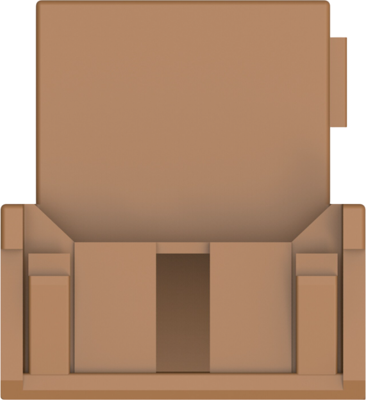

1-967629-6 AMP Automotive Power Connectors Image 3

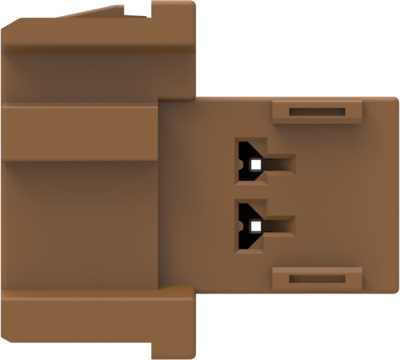

1-967629-6 AMP Automotive Power Connectors Image 4
Image may differ
Unit Price (€ / pc.)
2.4514 € *
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
2.45 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4514 €
10 pcs.
2.2729 €
25 pcs.
2.1182 €
50 pcs.
1.9278 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug housing, 1-967629-6, AMP

Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 18, Number of rows: 3, Nominal voltage architecture: 12 V, Body material: PA GF, Primary product color: brown, Connector code: A, Mating tab width: 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 5 mm, Row-to-row spacing: 5.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bag/Box, Serviceable: no, Connector position assurance capable: no

Technical specifications
Filter Property Value
Rated voltage 12 V
Pin number 18 pole
Version straight
Colour brown
Grid 5 mm
Type of locking Yes
Contact type plug
Number of rows 3
Connection crimp connection
Additional parts unequipped
Logistics
Property Value
Country of origin MX
Customs tariff number 85389011
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
